ES3668 — Cinema Screen Loudspeaker System

The ES3668 is a high-output three-way, bi-amplified screen-channel system for larger Direct-View LED wall auditoria. Because the LED wall does not pass sound, two slim modules mount on or around the panel: a bass-reflex dual-15-inch LF module for the low end, and a sealed mid/high module with six 6.5-inch midranges and a 3-inch compression driver. Response is 38 Hz–20 kHz (±3 dB), coverage 100° × 20°–30°.

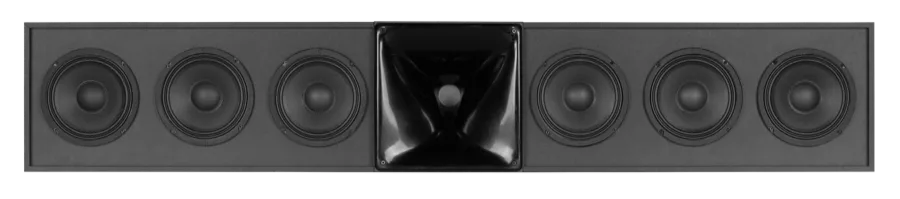

Measuring 1421 mm wide and only 223 mm deep, the slim mid/high module mounts flush to wide LED screen frames, freeing the space behind the panel; the horn turns with the screen position, keeping the acoustic image with the picture, and the six midranges share the vocal band.
