Specification Sheet

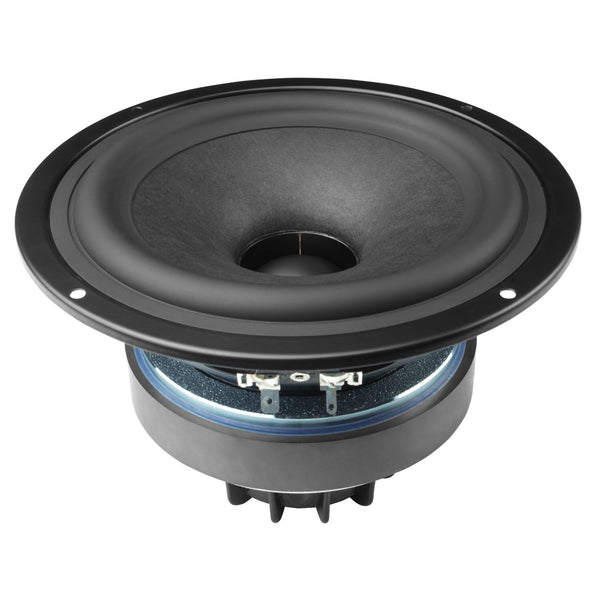

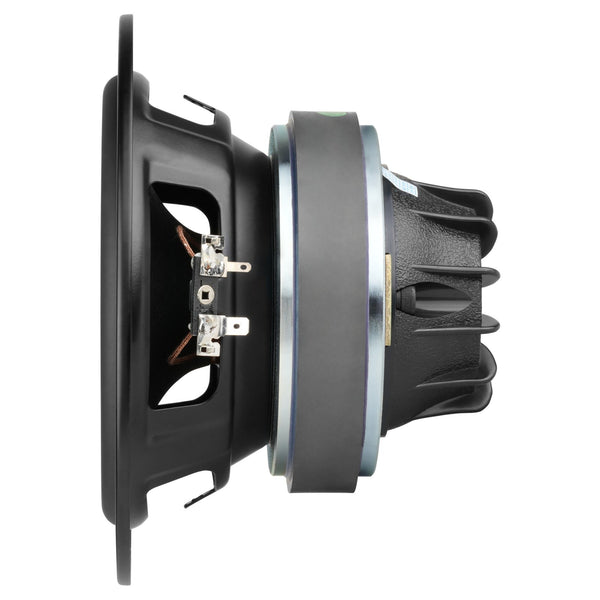

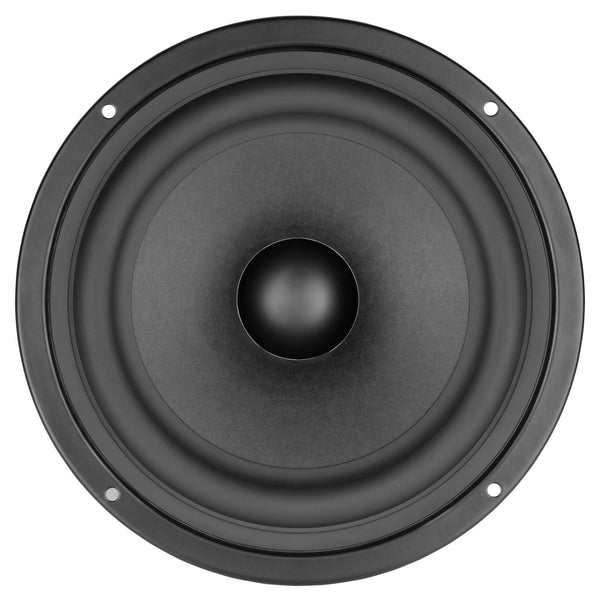

PRO 6.5" Coaxial Speaker Driver
SV-166C-66-120-0060-01
60–20kHzFrequency Range
89dBSensitivity
6ΩImpedance
100WRated Power
Features6.5-inch wool fiber cone woofer · 1.5-inch polymer material dome tweeter · Ferrite External magnetic circuit · Sovox ISP patented coaxial loudspeaker
01General Specification
| Unit | LF | HF | |
|---|---|---|---|
| Diameter | mm | ∅178 | ∅37.6 |
| Nominal impedance | Ω | 6 | 6 |
| Program power [1] | W | 100 | 20 |
| AES power rating [2] | W | 80 | 10 |
| Sensitivity [3] | dB | 89 | 89 |
| Frequency range | Hz | F0–20k | |
| Voice coil diameter | inch | 1.5 | 1.5 |
| Frame material | — | Iron basket | |
| Magnet material | — | Ferrite | |
| Recommended crossover [4] | Hz | 1k | |
| Xmax [5] | mm | 2.1 | — |
| Driver displacement enclosure | L | 1.11 | — |
03Shipping Information
| Net weight | kg | 2.2 |
| Unit size | mm | ∅178×H120 |
| Multipack weight | kg | — |
02LF T/S Parameters [6]
| DC resistance | Re (Ω) | 5.8 |
| Resonance frequency | Fs (Hz) | 60 |
| Moving mass | Mms (g) | 15.5 |
| Compliance | Cms (mm/N) | 0.45 |
| Mechanical losses | Rms (kg/s) | 1.65 |
| Force factor | BL (N/A) | 8.7 |
| Mechanical Q-factor | Qms | 3.5 |
| Electrical Q-factor | Qes | 0.4 |
| Total Q-factor | Qts | 0.4 |
| Equivalent air volume | Vas (L) | 9.9 |
| Voice coil Inductance | Le (mH) | 0.35 |
| Diaphragm area | Sd (cm²) | 126.68 |
| Reference efficiency | η0 (%) | 0.48 |
04SPL & Impedance Curve
05Dimensions mm
Test Notes
- Program power is defined as 3 dB greater than AES power.
- Tested in free air for two hours using a continuous band-limited pink noise signal as per AES 2-1984 Rev. 2003.
- Measured on axis at 2 V, 1 m; SPL is the average at 200, 500, 800 and 1000 Hz.
- High-pass filter with slope 12 dB/oct. or higher.
- Xmax = (Hvc − Hg) / 2, where Hvc is voice-coil height and Hg the gap height.
- Thiele-Small parameters measured after preconditioning (20–22 °C, 50% RH, 2 h) by Klippel LSI. All specifications subject to change without notice.
