Specification Sheet

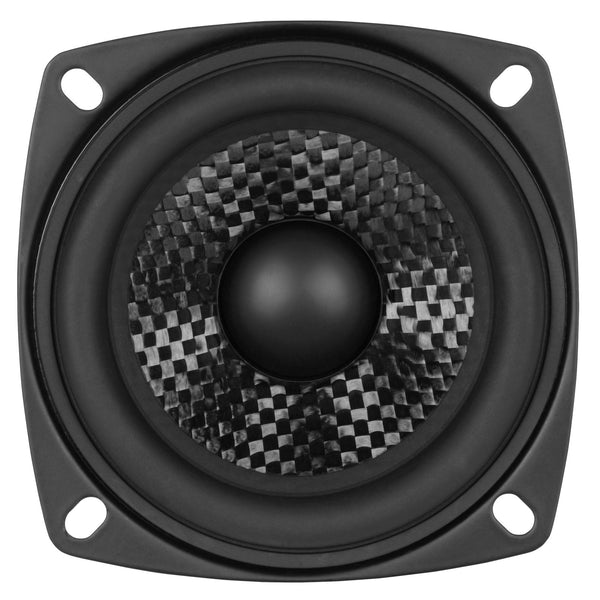

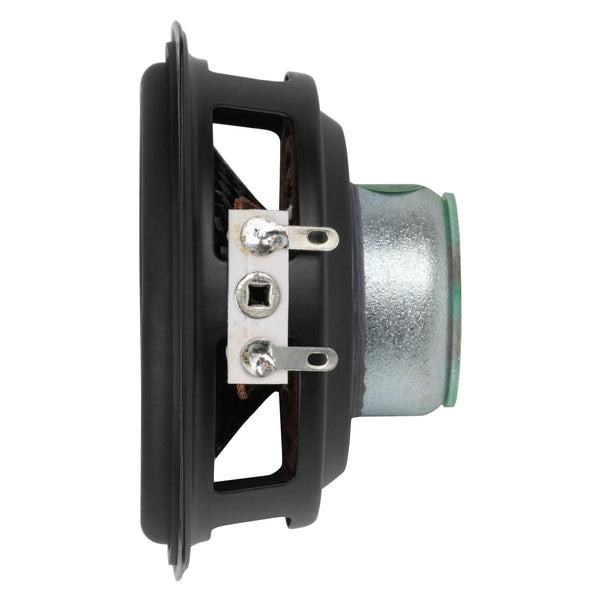

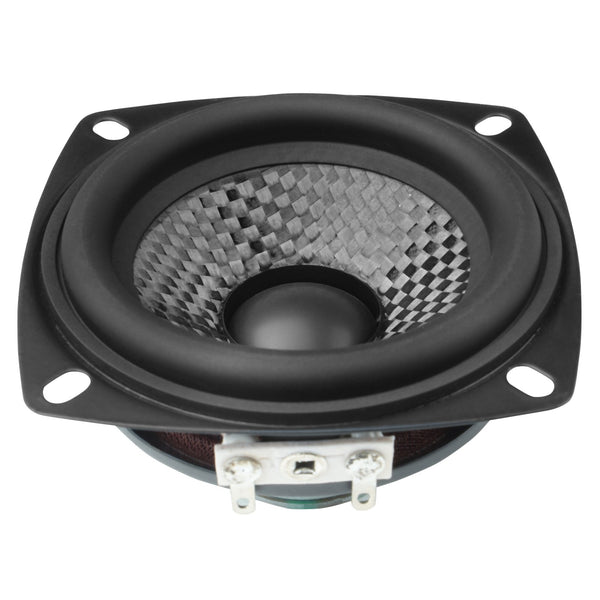

ART 2.75 英寸同轴单元
SV-070C-44-019-0150-01
150–20kHzFrequency Range
80dBSensitivity
4ΩImpedance
10WRated Power
Features2.75 英寸碳纤维低音单元 · 0.75 英寸聚合物球顶高音单元 · 钕铁硼内磁式磁路 · SOVOX ISP 专利同轴单元
01General Specification
| Unit | LF | HF | |
|---|---|---|---|
| 直径 | mm | ∅75 | ∅19.7 |
| 标称阻抗 | Ω | 4 | 4 |
| 节目功率 [1] | W | 10 | 5 |
| AES 额定功率 [2] | W | 8 | 3 |
| 灵敏度 [3] | dB | 80 | 83 |
| 频率范围 | Hz | F0–20k | |
| 音圈直径 | inch | 0.75 | 0.75 |
| 盆架材料 | — | 铁质盆架 | |
| 磁钢材料 | — | 钕铁硼 | |
| 建议分频点 [4] | Hz | 2.5k | |
| 最大线性冲程 Xmax [5] | mm | 1.75 | — |
| 单元排水容积 | L | 0.0411 | — |
03Shipping Information
| 净重 | kg | 0.0765 |
| 单元尺寸 | mm | L70×W70×H39.5 |
| 整箱重量 | kg | — |
02LF T/S Parameters [6]
| 直流电阻 | Re (Ω) | 3.25 |
| 谐振频率 | Fs (Hz) | 148.3 |
| 振动质量 | Mms (g) | 2.702 |
| 顺性 | Cms (mm/N) | 0.426 |
| 机械损耗 | Rms (kg/s) | 0.565 |
| 力因数 | BL (N/A) | 1.923 |
| 机械品质因数 | Qms | 4.453 |
| 电品质因数 | Qes | 2.212 |
| 总品质因数 | Qts | 1.478 |
| 等效容积 | Vas (L) | 0.3163 |
| 音圈电感 | Le (mH) | 0.120 |
| 振膜面积 | Sd (cm²) | 22.90 |
| 参考效率 | η0 (%) | 0.045 |
04SPL & Impedance Curve
05Dimensions mm
Test Notes
- Program power is defined as 3 dB greater than AES power.
- Tested in free air for two hours using a continuous band-limited pink noise signal as per AES 2-1984 Rev. 2003.
- Measured on axis at 2 V, 1 m; SPL is the average at 200, 500, 800 and 1000 Hz.
- High-pass filter with slope 12 dB/oct. or higher.
- Xmax = (Hvc − Hg) / 2, where Hvc is voice-coil height and Hg the gap height.
- Thiele-Small parameters measured after preconditioning (20–22 °C, 50% RH, 2 h) by Klippel LSI. All specifications subject to change without notice.
