Specification Sheet

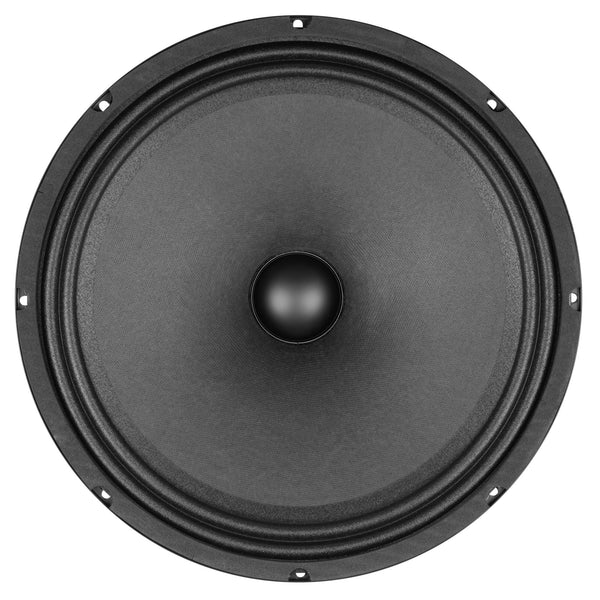

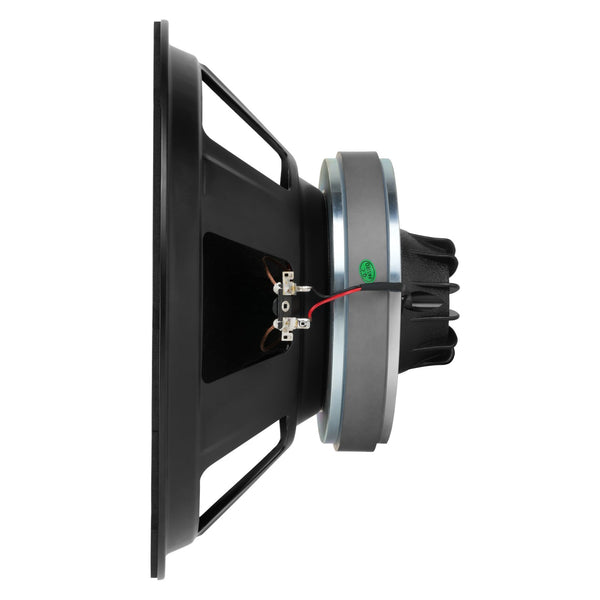

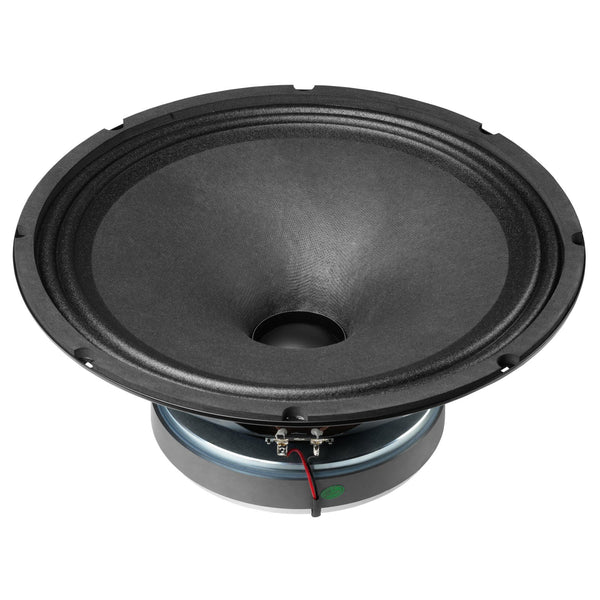

PRO 12 英寸同轴单元
SV-300C-44-165-0045-02
50–20kHzFrequency Range
92dBSensitivity
4ΩImpedance
200WRated Power
Features12 英寸纸盆低音单元 · 2 英寸高分子材料球顶高音单元 · 铁氧体外磁式磁路 · 基础分频器配置 · SOVOX ISP 专利同轴扬声器
01General Specification
| Unit | LF | HF | |
|---|---|---|---|
| 直径 | mm | ∅305 | ∅50.2 |
| 标称阻抗 | Ω | 4 | 4 |
| 节目功率 [1] | W | 400 | 30 |
| AES 额定功率 [2] | W | 200 | 20 |
| 灵敏度 [3] | dB | 92 | 90 |
| 频率范围 | Hz | F0–20k | |
| 音圈直径 | mm | ∅50.9 | ∅49.2 |
| 盆架材料 | — | 铁盆架 | |
| 磁钢材料 | — | 铁氧体 | |
| 建议分频点 [4] | Hz | 1.5k | |
| 最大线性冲程（Xmax） [5] | mm | 4.3 | — |
| 单元排水容积 | L | 4.35 | — |
03Shipping Information
| 净重 | kg | 4.38 |
| 单元尺寸 | mm | ∅306×H167 |
| 整箱重量 | kg | — |
02LF T/S Parameters [6]
| 直流电阻 | Re (Ω) | 3.5 |
| 谐振频率 | Fs (Hz) | 50 |
| 振动质量 | Mms (g) | 49 |
| 顺性 | Cms (mm/N) | 0.17 |
| 机械损耗 | Rms (kg/s) | 3.3 |
| 力因数 | BL (N/A) | 11.1 |
| 机械品质因数 | Qms | 4.96 |
| 电品质因数 | Qes | 0.49 |
| 总品质因数 | Qts | 0.45 |
| 等效容积 | Vas (L) | 68.86 |
| 音圈电感 | Le (mH) | 0.4 |
| 振膜面积 | Sd (cm²) | 522.79 |
| 参考效率 | η0 (%) | 2 |
04SPL & Impedance Curve
05Dimensions mm
Test Notes
- Program power is defined as 3 dB greater than AES power.
- Tested in free air for two hours using a continuous band-limited pink noise signal as per AES 2-1984 Rev. 2003.
- Measured on axis at 2 V, 1 m; SPL is the average at 200, 500, 800 and 1000 Hz.
- High-pass filter with slope 12 dB/oct. or higher.
- Xmax = (Hvc − Hg) / 2, where Hvc is voice-coil height and Hg the gap height.
- Thiele-Small parameters measured after preconditioning (20–22 °C, 50% RH, 2 h) by Klippel LSI. All specifications subject to change without notice.
