Specification Sheet

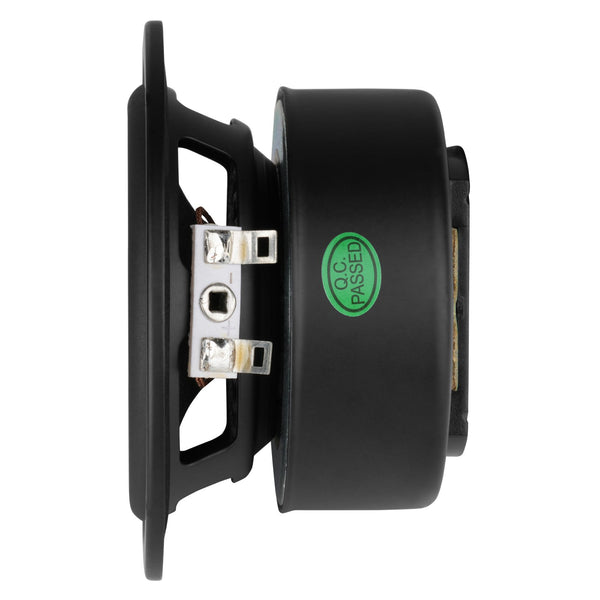

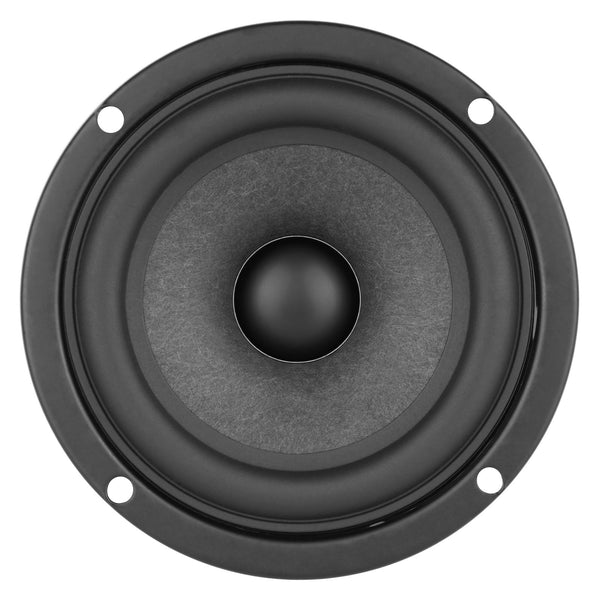

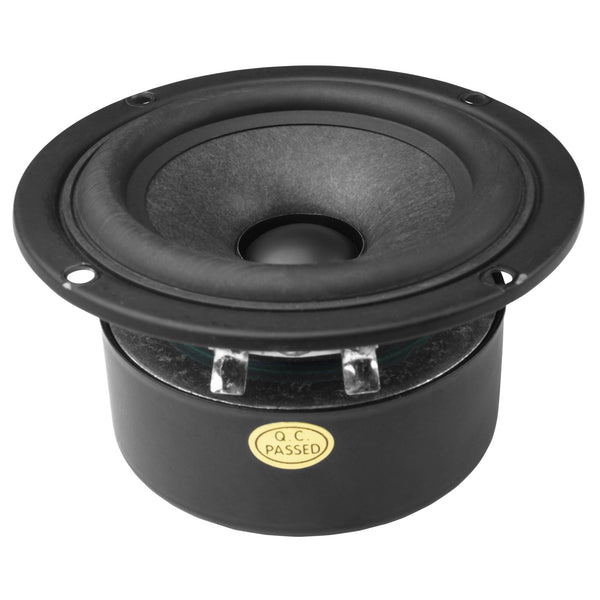

PRO 3 英寸同轴单元（羊毛盆）
SVF090WR-44-068-098
125–20kHzFrequency Range
82dBSensitivity
4ΩImpedance
15WRated Power
Features3 英寸羊毛盆低音单元 · 0.75 英寸球顶高音单元 · SOVOX ISP 同轴架构 · 全球最小的两分频同轴扬声器之一 · 防磁设计 · 提供多个子型号可选
01General Specification
| Unit | LF | HF | |
|---|---|---|---|
| 直径 | mm | ∕89 | ∕19.7 |
| 标称阻抗 | Ω | 4 | 4 |
| 节目功率 [1] | W | 15 | 5 |
| AES 额定功率 [2] | W | 10 | 3 |
| 灵敏度 [3] | dB | 82 | 86 |
| 频率范围 | Hz | F0–8k | F0–20k |
| 音圈直径 | mm | ∕20.4 | ∕19.4 |
| 盆架材料 | — | 铁盆架 | |
| 磁钢材料 | — | 铁氧体（Y30） | 钕铁硼 |
| 建议分频点 [4] | Hz | 2.5k | |
| 最大线性冲程（Xmax） [5] | mm | 4.0 | — |
| 最大机械冲程（Xmech） [6] | mm | 5.15 | — |
| 单元排水容积 | L | 0.137 | — |
03Shipping Information
| 净重 | kg | 0.45 |
| 单元尺寸 | mm | ∅89×H53 |
| 整箱重量 | kg | — |
02LF T/S Parameters [6]
| 直流电阻 | Re (Ω) | 3.68 |
| 谐振频率 | Fs (Hz) | 125.9 |
| 振动质量 | Mms (g) | 2.995 |
| 顺性 | Cms (mm/N) | 0.533 |
| 机械损耗 | Rms (kg/s) | 0.297 |
| 力因数 | BL (N/A) | 2.486 |
| 机械品质因数 | Qms | 7.981 |
| 电品质因数 | Qes | 1.412 |
| 总品质因数 | Qts | 1.200 |
| 等效容积 | Vas (L) | 0.7568 |
| 音圈电感 | Le (mH) | 0.152 |
| 振膜面积 | Sd (cm²) | 31.67 |
| 参考效率 | η0 (%) | 0.103 |
04SPL & Impedance Curve
05Dimensions mm
Test Notes
- Program power is defined as 3 dB greater than AES power.
- Tested in free air for two hours using a continuous band-limited pink noise signal as per AES 2-1984 Rev. 2003.
- Measured on axis at 2.83 V, 1 m; SPL is the average at 200, 500, 800 and 1000 Hz.
- High-pass filter with slope 12 dB/oct. or higher.
- Xmax = (Hvc − Hg) / 2, where Hvc is voice-coil height and Hg the gap height.
- Thiele-Small parameters measured after preconditioning (20–22 °C, 50% RH, 2 h) by Klippel LSI. All specifications subject to change without notice.
