Specification Sheet

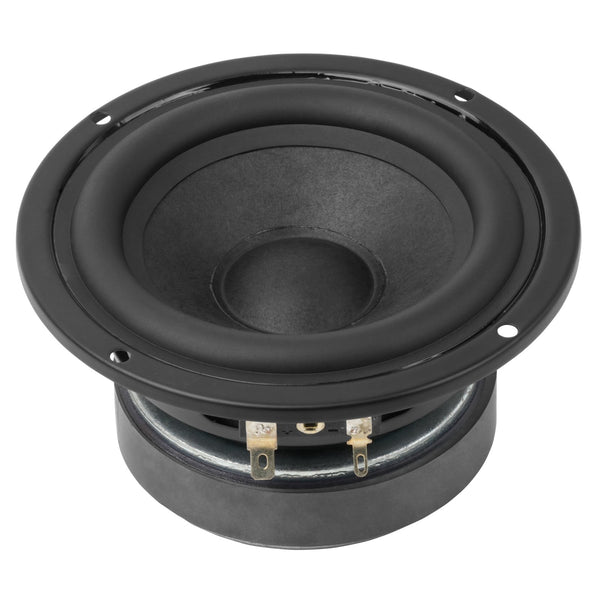

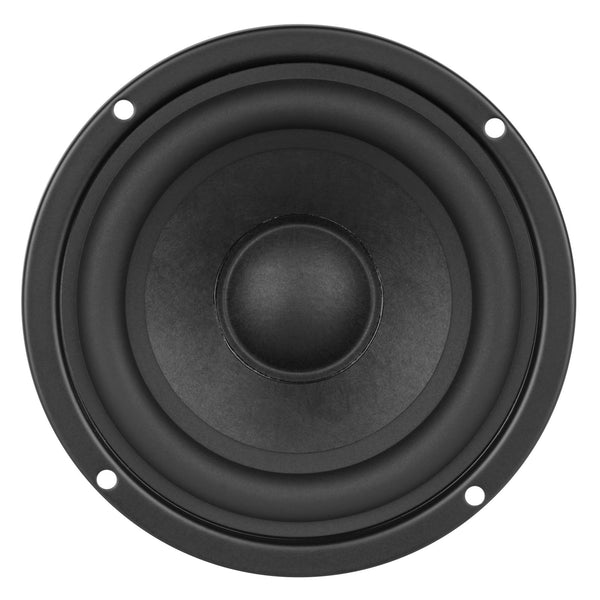

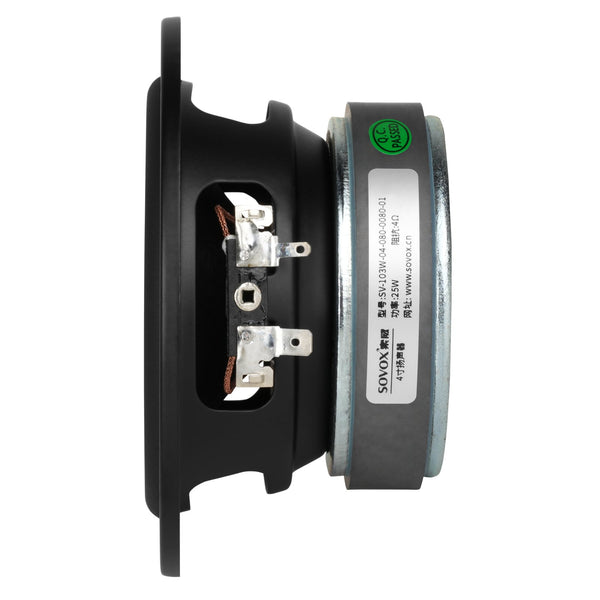

PRO 4 英寸中低音单元
SV-103W-04-080-0080-01
80–10kHzFrequency Range
85dBSensitivity
4ΩImpedance
25WRated Power
Features4 英寸中低音振膜 · 轻质高刚性振膜 · 耐高温音圈
01General Specification
| Unit | Value | |
|---|---|---|
| 直径 | mm | ∅116 |
| 标称阻抗 | Ω | 4 |
| 节目功率 [1] | W | 25 |
| AES 额定功率 [2] | W | 30 |
| 灵敏度 [3] | dB | 85 |
| 频率范围 | Hz | F0–10kHz |
| 音圈直径 | inch | 1.0 |
| 盆架材料 | — | 铁盆架 |
| 磁钢材料 | — | 铁氧体 |
| 建议分频点 [4] | Hz | 1KHz |
| 最大线性冲程（Xmax） [5] | mm | 4.0 |
| 单元排水容积 | L | 0.267 |
03Shipping Information
| 净重 | kg | 0.73 |
| 单元尺寸 | mm | ∅116×H61 |
| 整箱重量 | kg | — |
02LF T/S Parameters [6]
| 直流电阻 | Re (Ω) | 3.2 |
| 谐振频率 | Fs (Hz) | 77 |
| 振动质量 | Mms (g) | 8.5 |
| 顺性 | Cms (mm/N) | 0.5 |
| 机械损耗 | Rms (kg/s) | 0.8 |
| 力因数 | BL (N/A) | 4.8 |
| 机械品质因数 | Qms | 5 |
| 电品质因数 | Qes | 0.56 |
| 总品质因数 | Qts | 0.5 |
| 等效容积 | Vas (L) | 1.86 |
| 音圈电感 | Le (mH) | 0.23 |
| 振膜面积 | Sd (cm²) | 51.53 |
| 参考效率 | η0 (%) | 0.14 |
04SPL & Impedance Curve
05Dimensions mm
Test Notes
- Program power is defined as 3 dB greater than AES power.
- Tested in free air for two hours using a continuous band-limited pink noise signal as per AES 2-1984 Rev. 2003.
- Measured on axis at 2 V, 1 m; SPL is the average at 200, 500, 800 and 1000 Hz.
- High-pass filter with slope 12 dB/oct. or higher.
- Xmax = (Hvc − Hg) / 2, where Hvc is voice-coil height and Hg the gap height.
- Thiele-Small parameters measured after preconditioning (20–22 °C, 50% RH, 2 h) by Klippel LSI. All specifications subject to change without notice.
