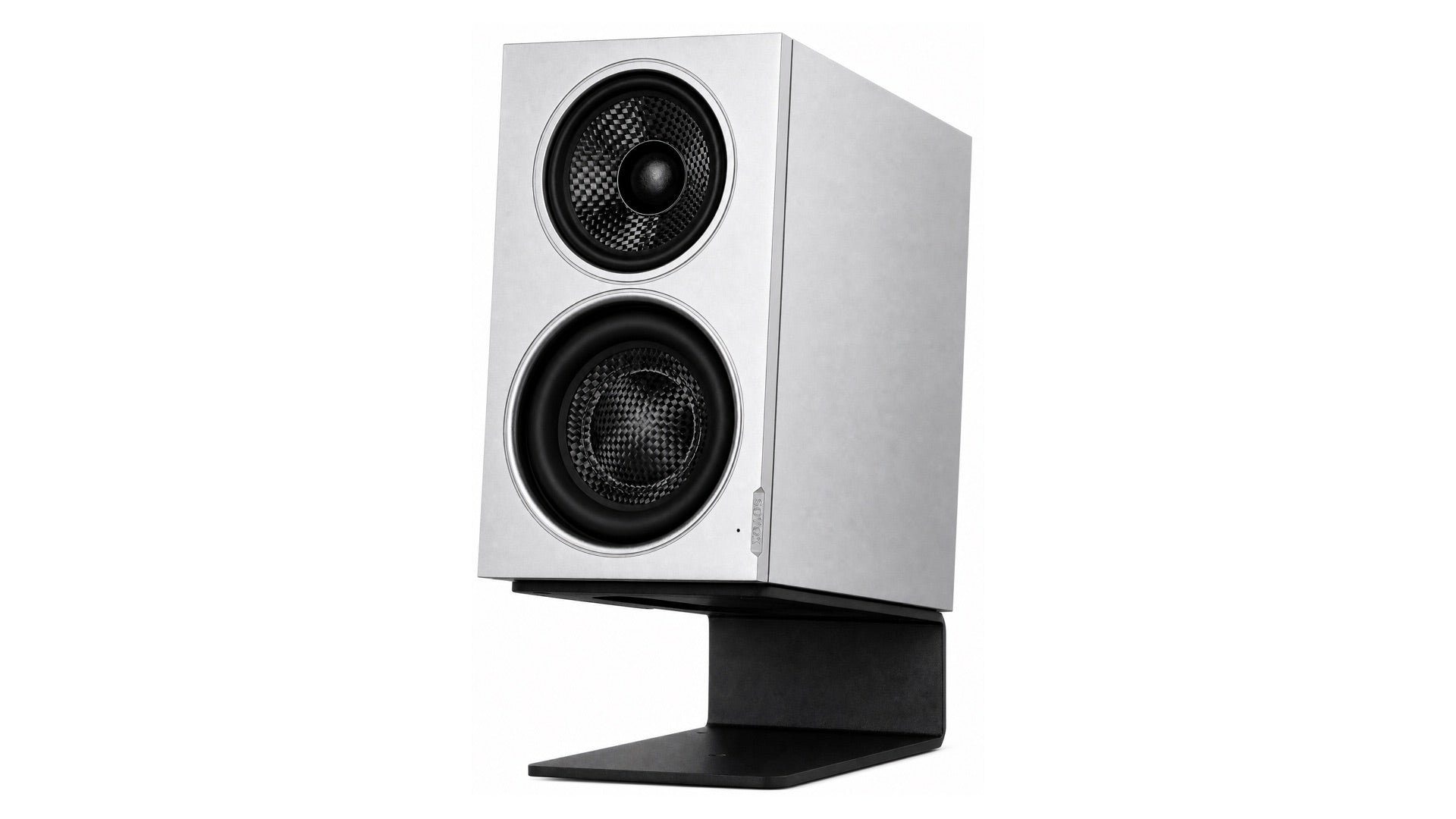

SOVOX MINIMAX 3M studio monitor — white, front view

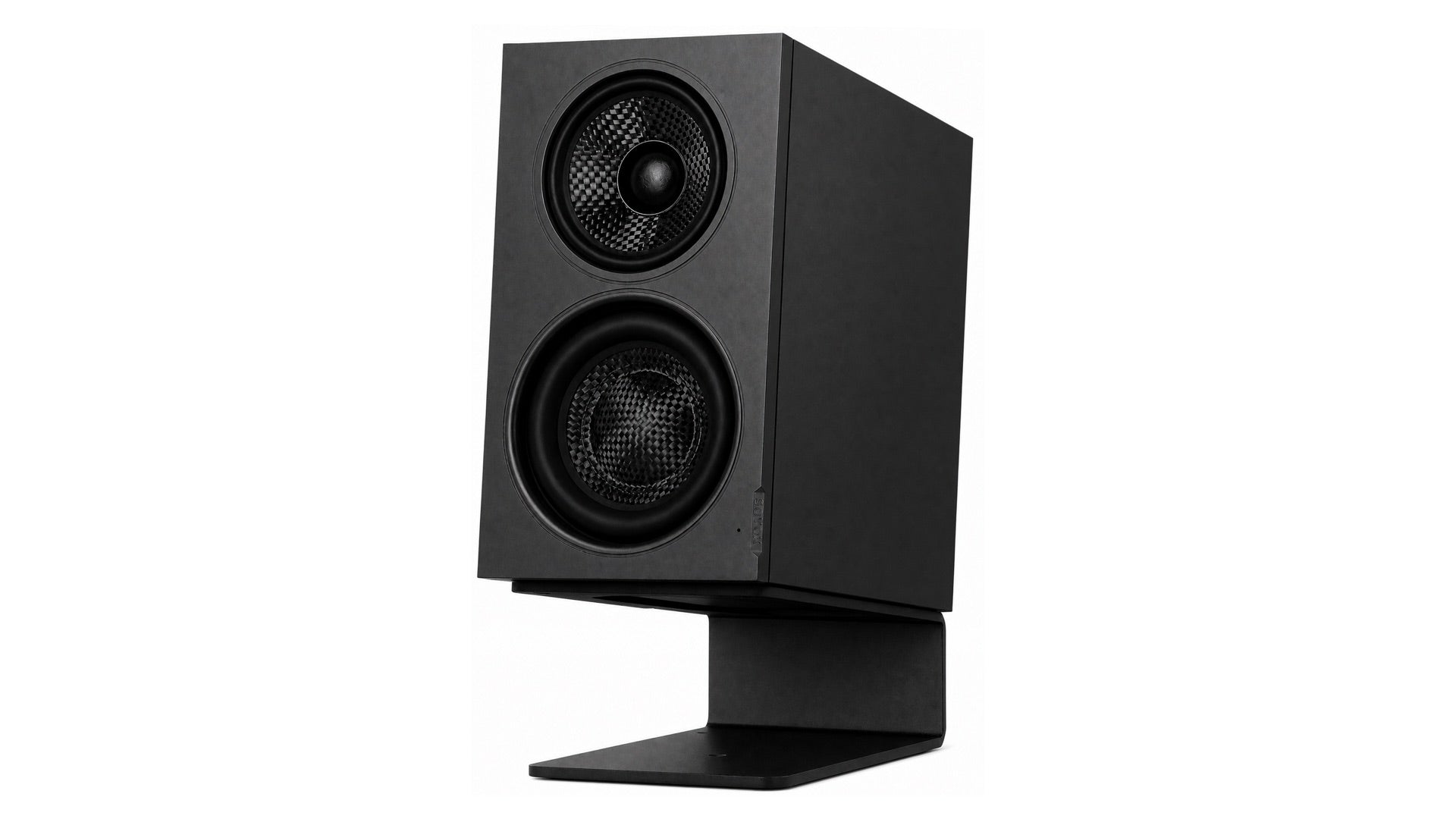

SOVOX MINIMAX 3M studio monitor — black, front view

Vendor:My Store

MINIMAX 3M

$800.00

The MiniMax3M is a compact three-way active speaker featuring 3 drivers in a sleek aluminum body. It delivers precise, detailed sound with a carbon fiber midrange and polymer tweeter, ensuring clear highs and accurate bass through its advanced passive radiator design.

Color
Color: Silver

Pairs well with
MINIMAX 3M
From$800.00

Ultra Power, Tiny Space

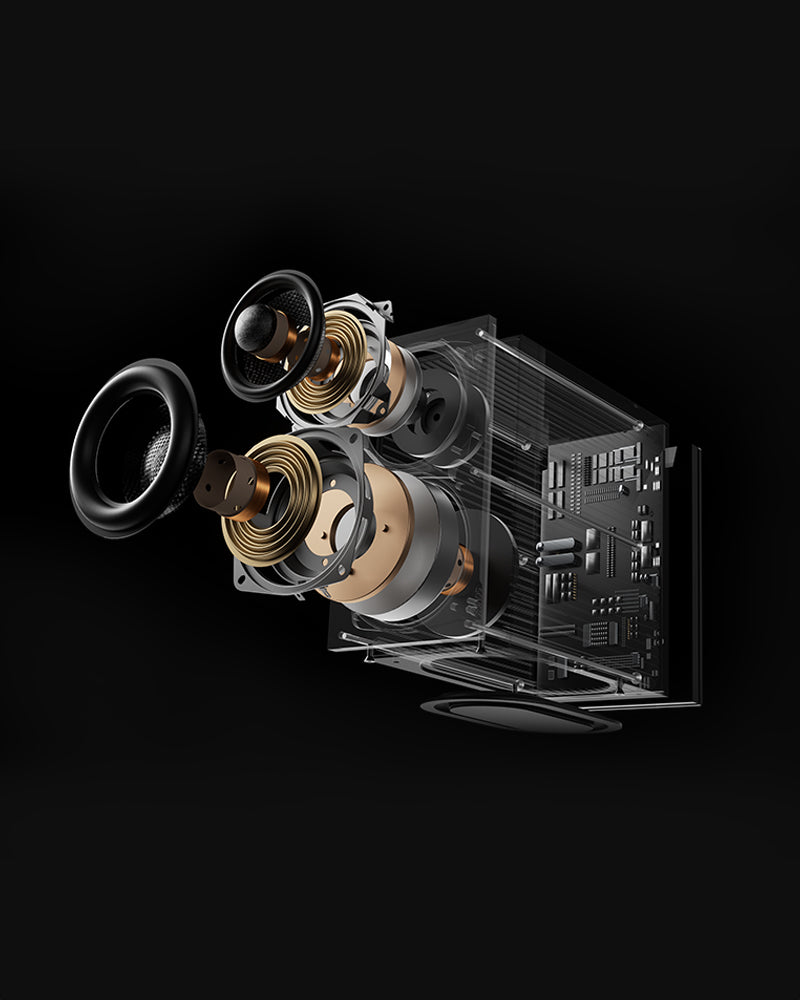

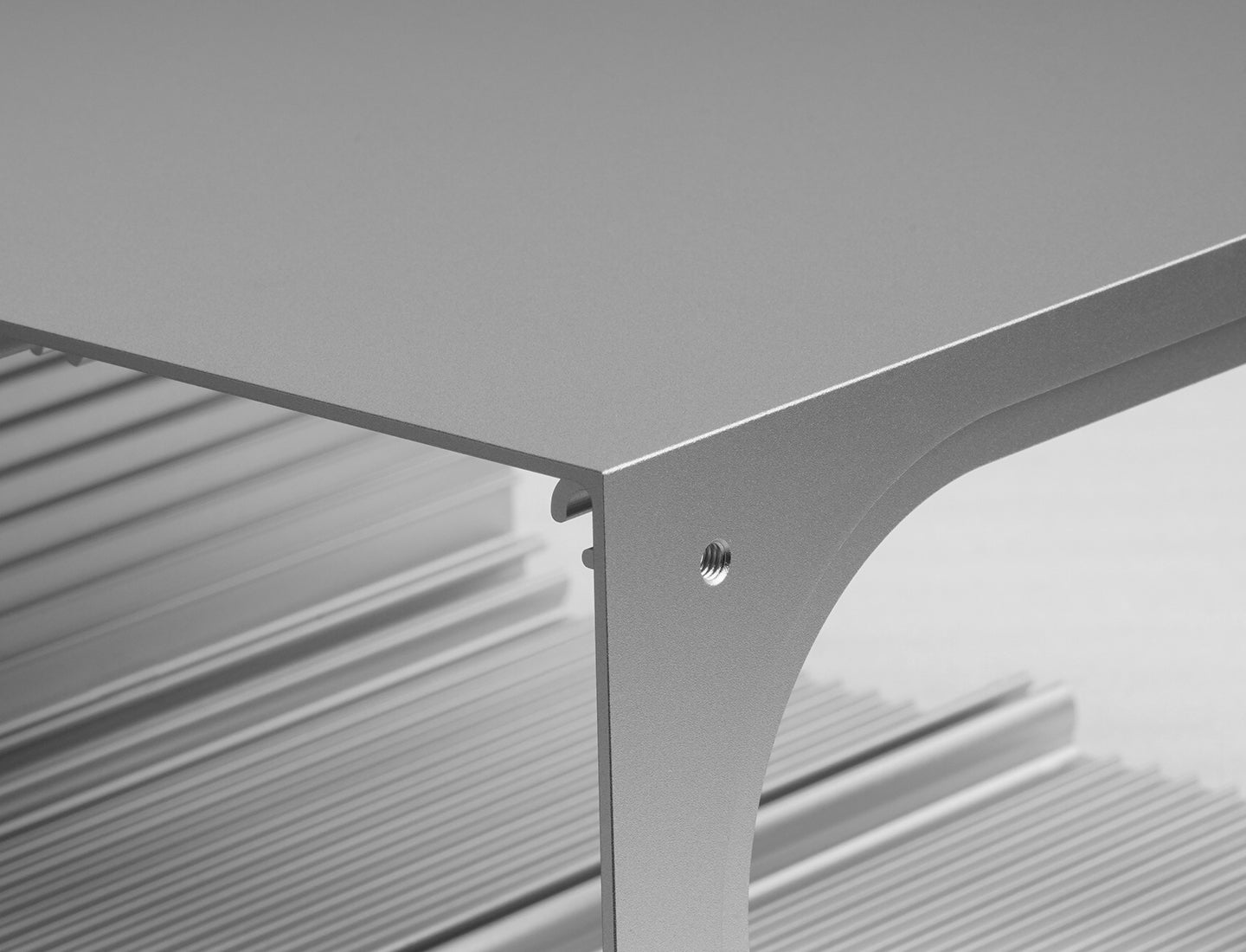

Rigid Aluminum, Pure by Design.

Rigid Aluminum, Pure by Design.

Exceptional rigidity with minimal resonance

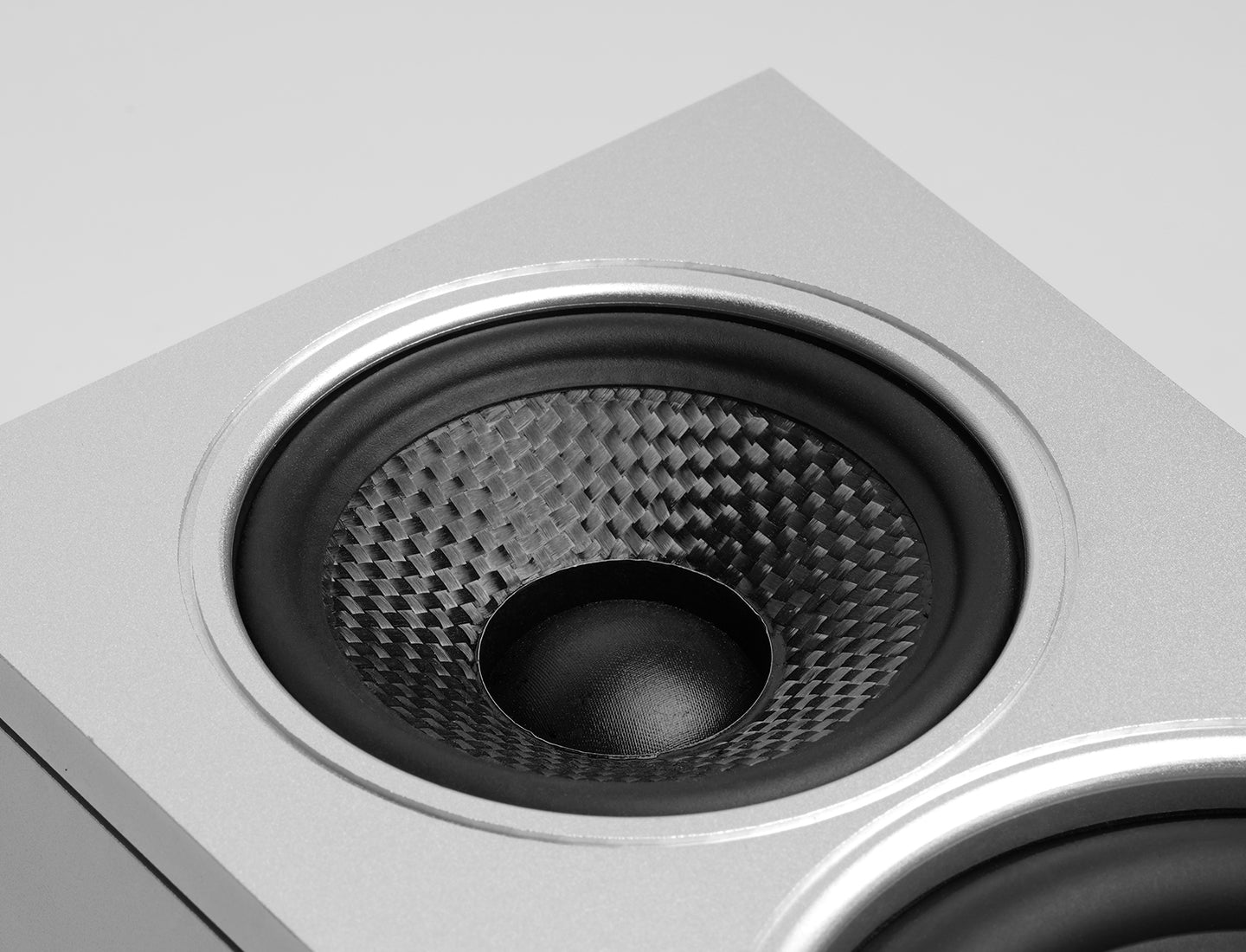

3" ISP™ Coaxial Driver3

3" ISP™ Coaxial Driver3

1″ Silk-Dome Tweeter

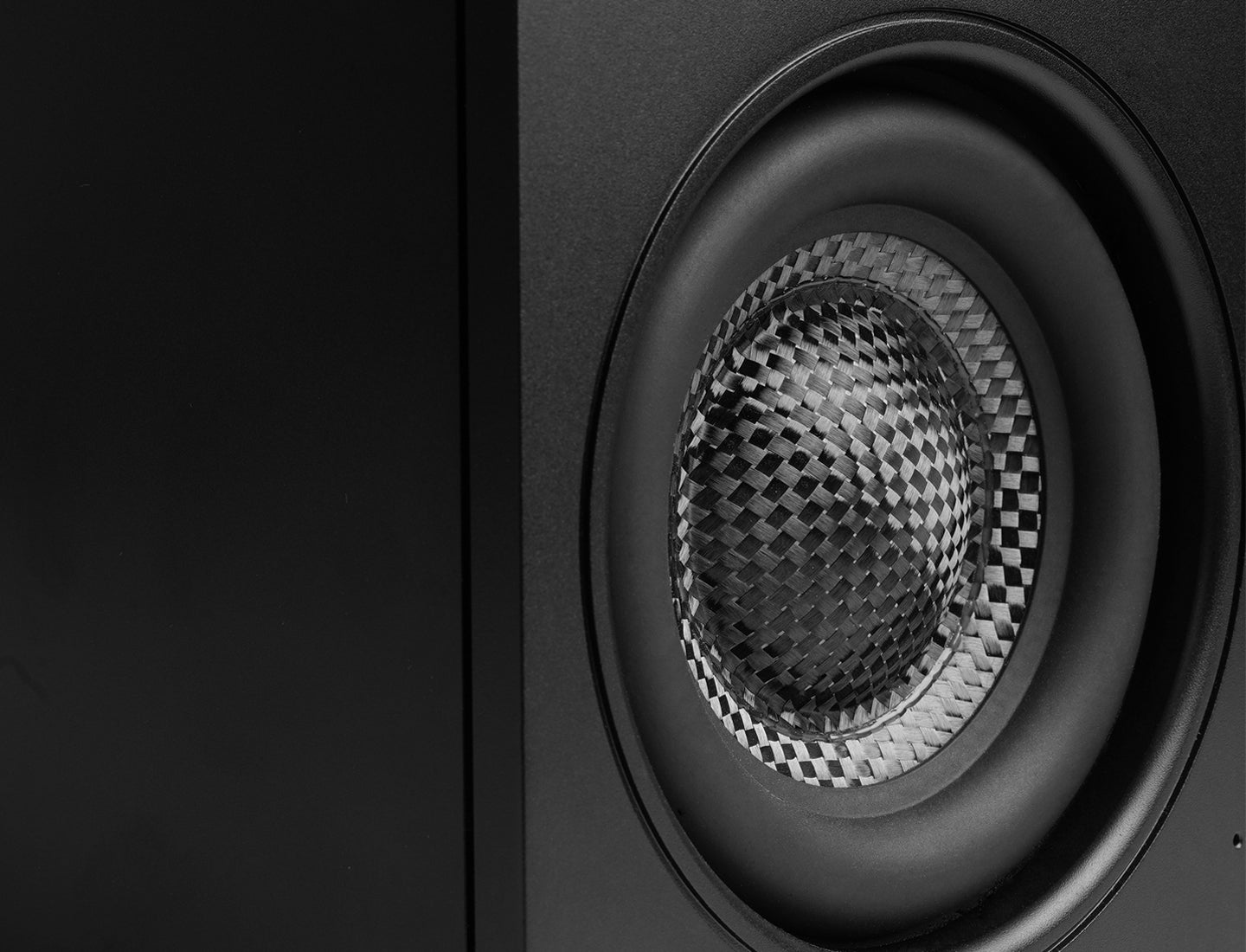

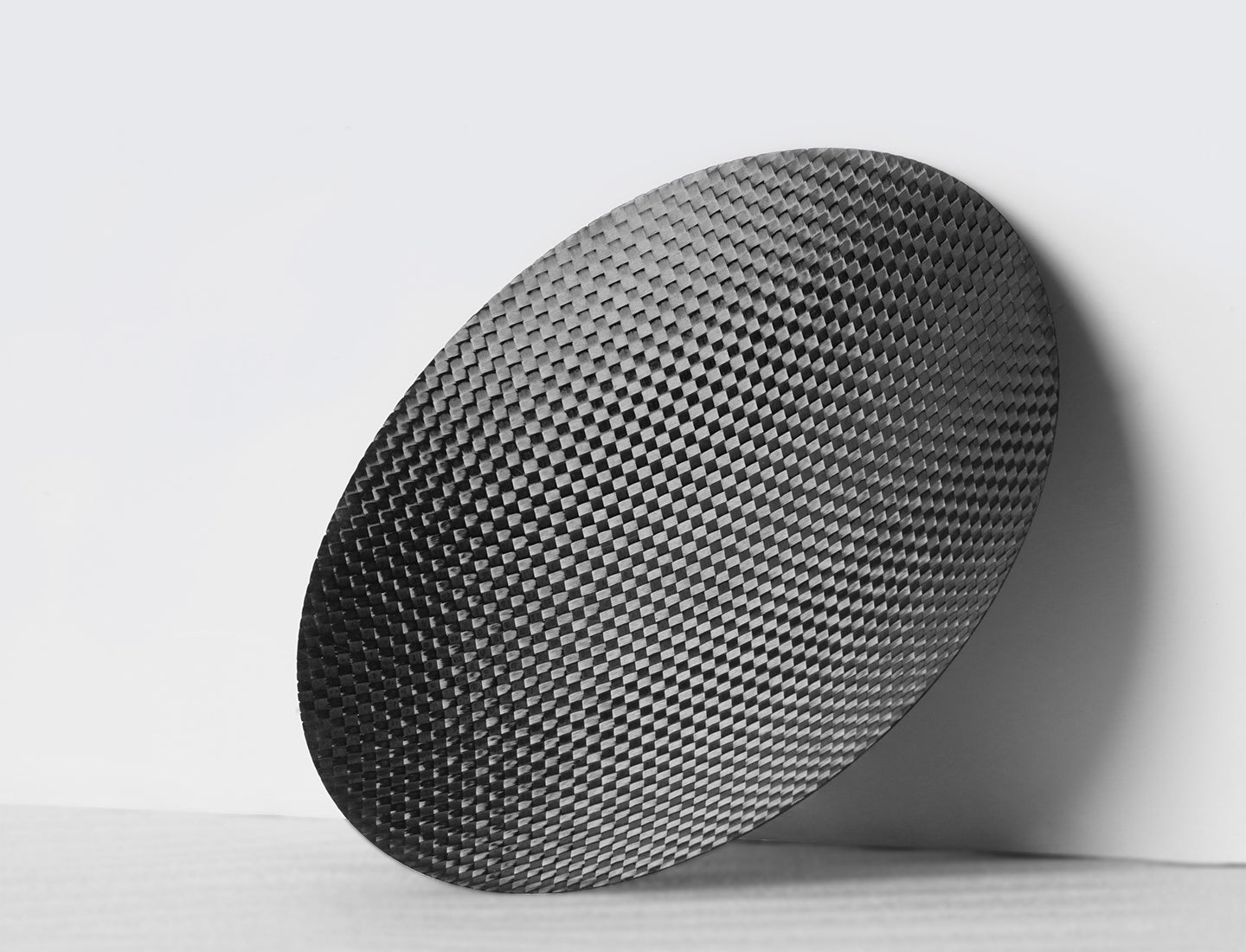

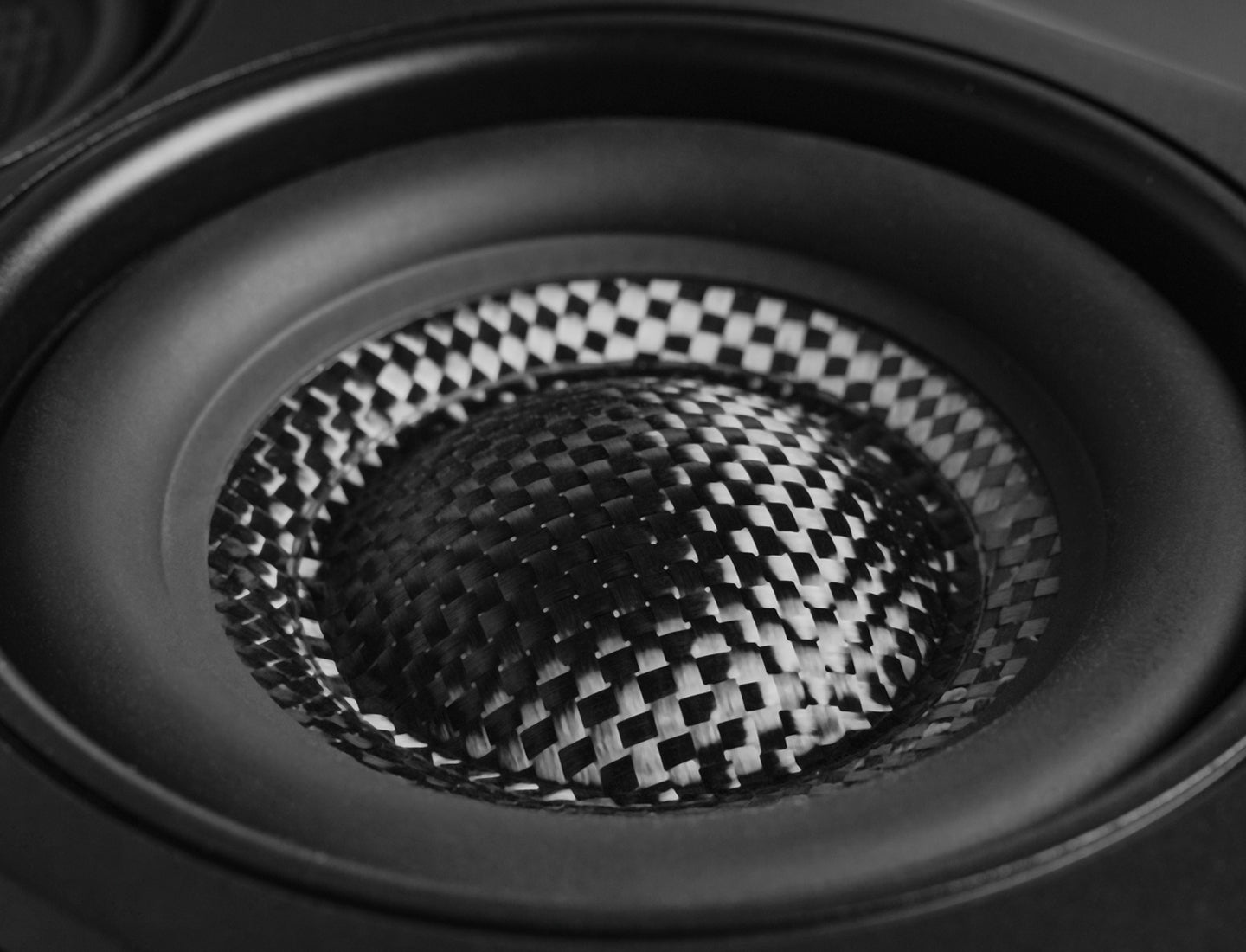

3″ Carbon-Fiber Midrange

Purpose-Built 3.5-inch Woofer

Low-frequency extension down to 45 Hz,

delivering powerful and controlled bass response.

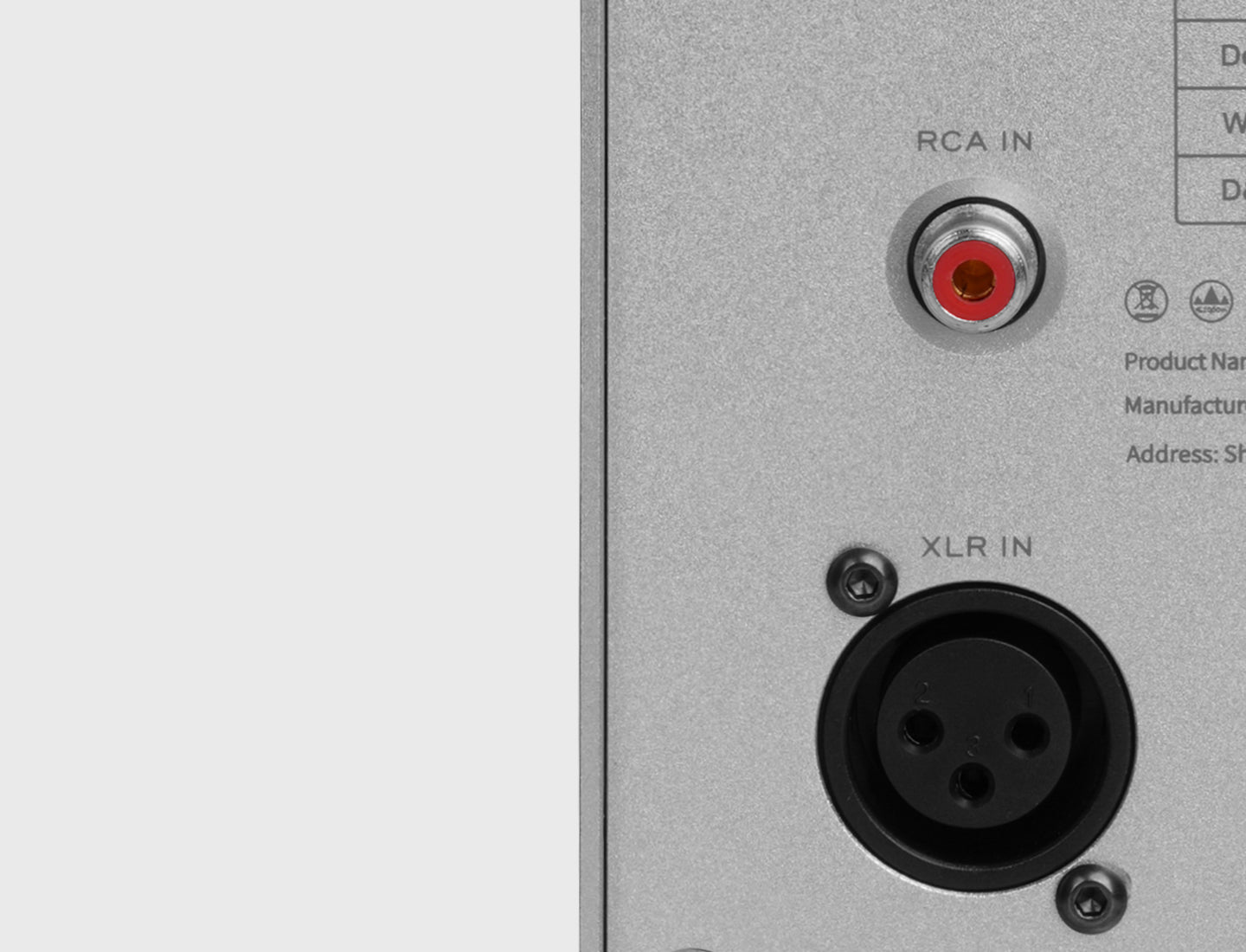

Pro Audio I/O

Pro Audio I/O

Balanced XLR

Unbalanced RCA Inputs

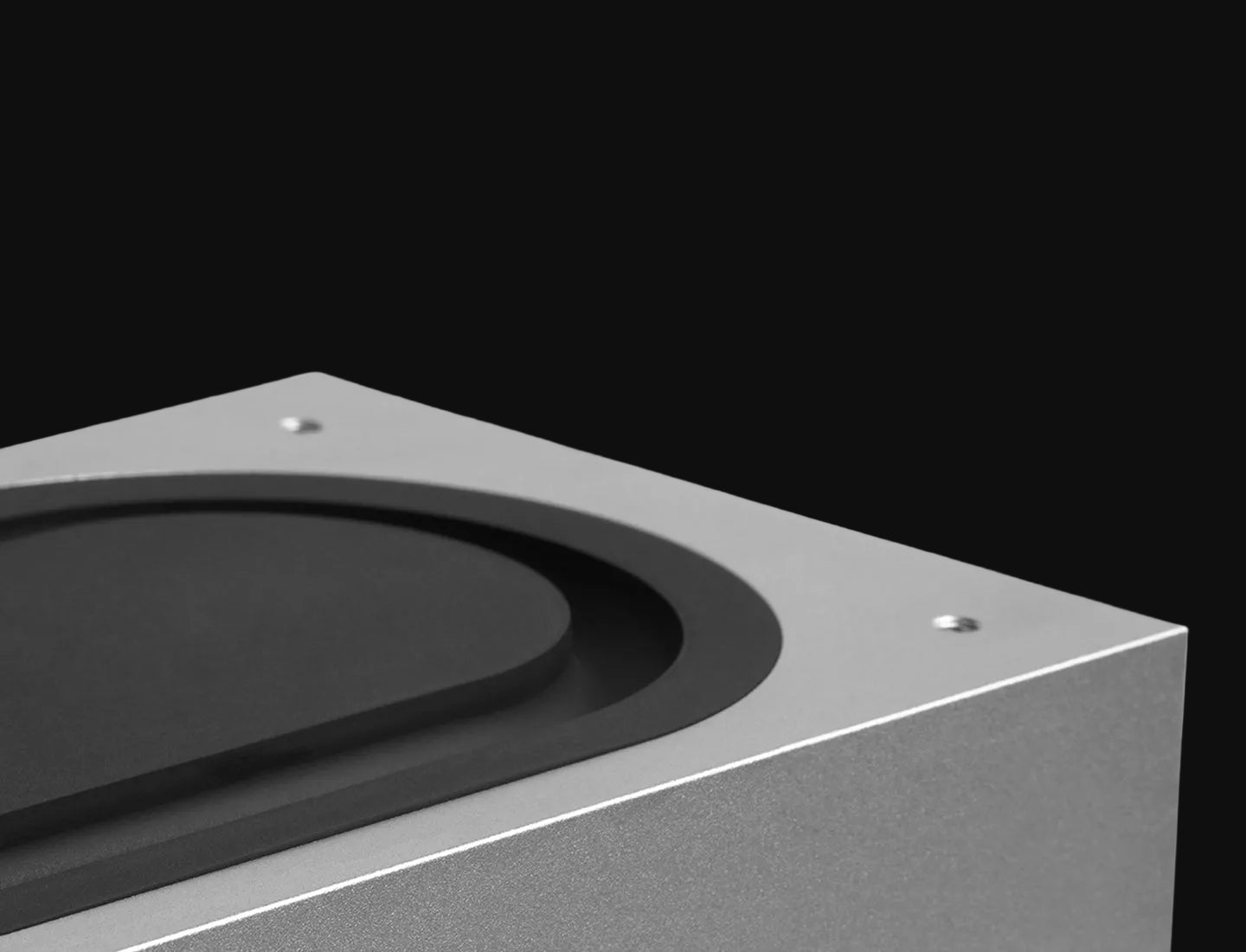

Concealed Passive Radiator Design

Concealed Passive Radiator Design

Improves bass efficiency and extension in a hidden design.

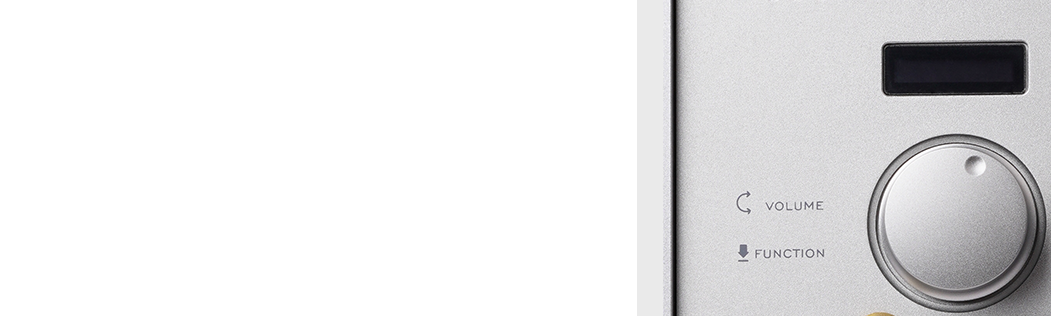

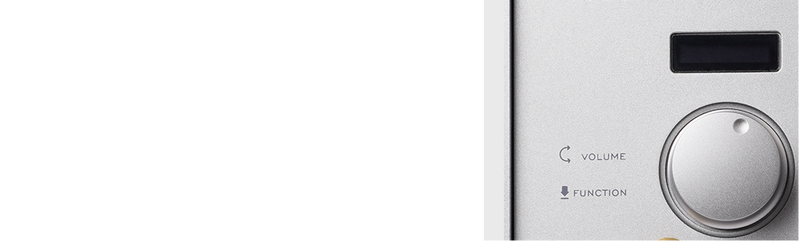

DSP Room Adaption DSP Room Adaption

DSP Room Adaption

Address common acoustical issues from desks, and walls.

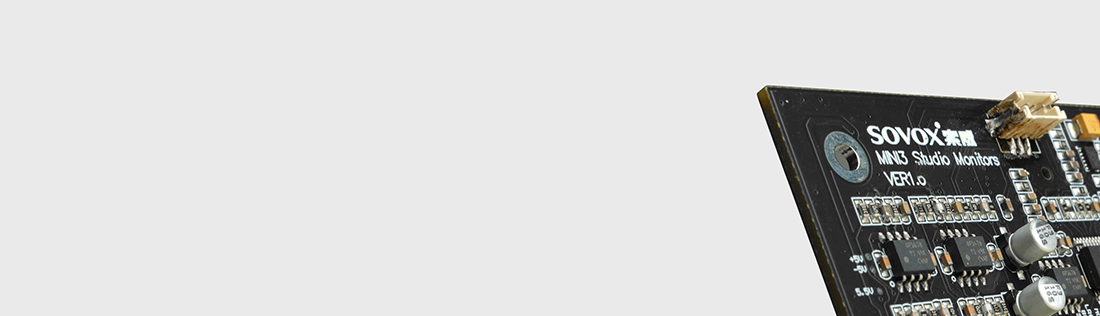

Lossless Digital Signal Path Lossless Digital Signal Path

Lossless Digital Signal Path

Fully digital signal chain after the DAC, minimizing analog interference and distortion.

Patented ®ISP™ Coaxial

Precision Sound Since 1994

MiniMax3 features SOVOX’s exclusive ISP™ coaxial technology, refined since 1994, delivering phase-accurate sound and clear imaging for reliable nearfield monitoring.

Active–Passive Dual Bass System

Clean Low Frequencies Down to 45kHz

MiniMax3 pairs an in-house designed 3.5-inch active woofer with a 5-inch passive radiator, delivering deep, controlled bass with low distortion—solving the limited bass extension of traditional 3-inch monitors.

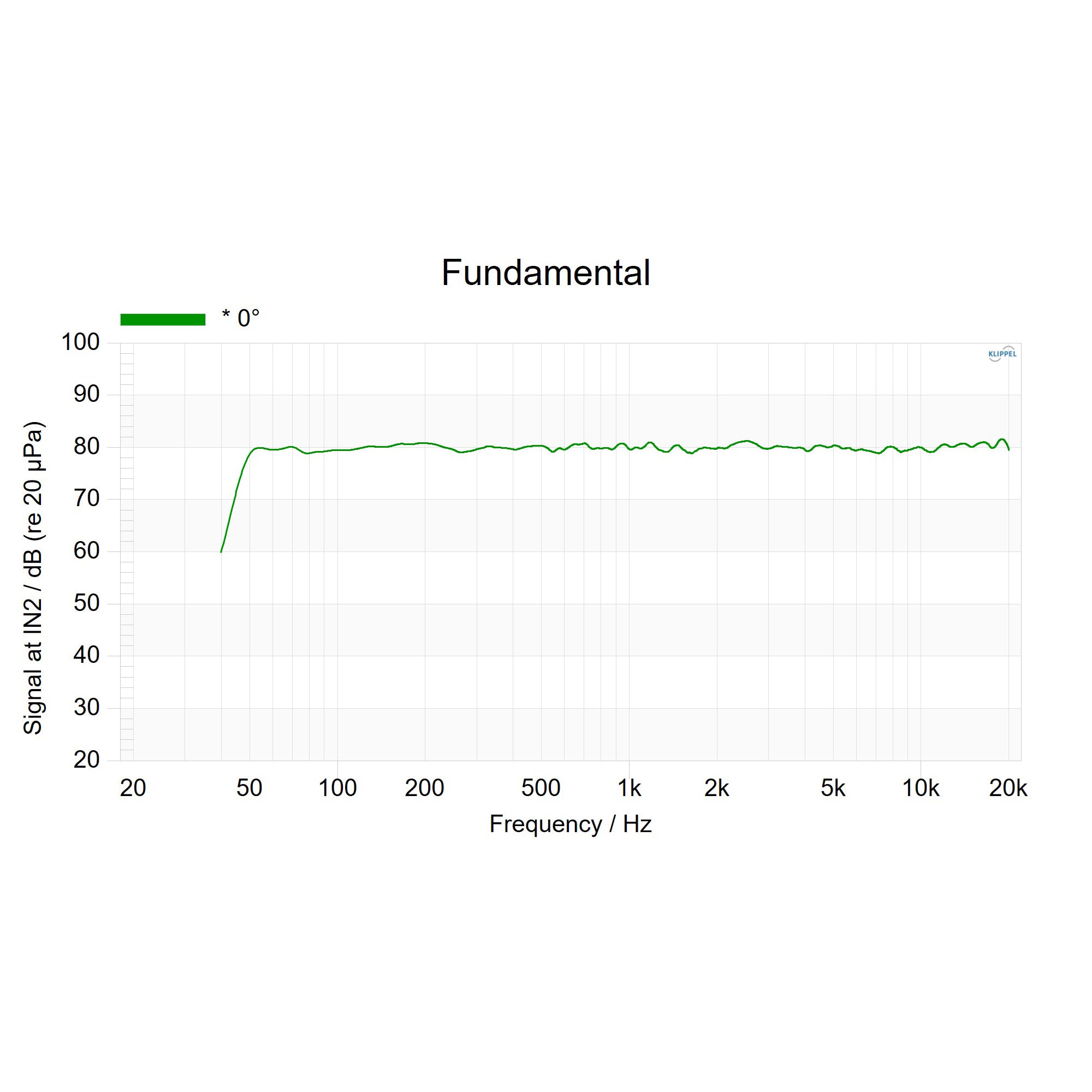

MINIMAX 3M frequency response (SPL) measurement chart

Why Three-Way Sounds Different

MiniMax3 rethinks compact monitoring with a true three-way design in a 3-inch format.

Unlike conventional two-way designs, its three-way architecture separates low, mid, and high frequencies across dedicated drivers, resulting in cleaner mids, smoother transitions, and a more balanced, consistent sound—clearly reflected in the measured frequency response.

DSP Room Adaption

MiniMax3 offers four placement presets—Free Field, Desktop, Near Wall, and Desktop Corner—to compensate for boundary effects and placement-related tonal changes.

Combined with manual HF and LF adjustment, it ensures clear, balanced nearfield monitoring in any space, even small rooms.

Technical Specifications

MiniMax 3M · 3-Way Coaxial Monitor
46 Hz – 20 kHzResponse −6 dB97 dBMax SPL @ 1 m3-Way Coaxial4 Drivers<1 %THD 240 Hz – 20 kHz4.0 kg195 × 110 × 200 mm
01Measurements 9 charts · Klippel NFS

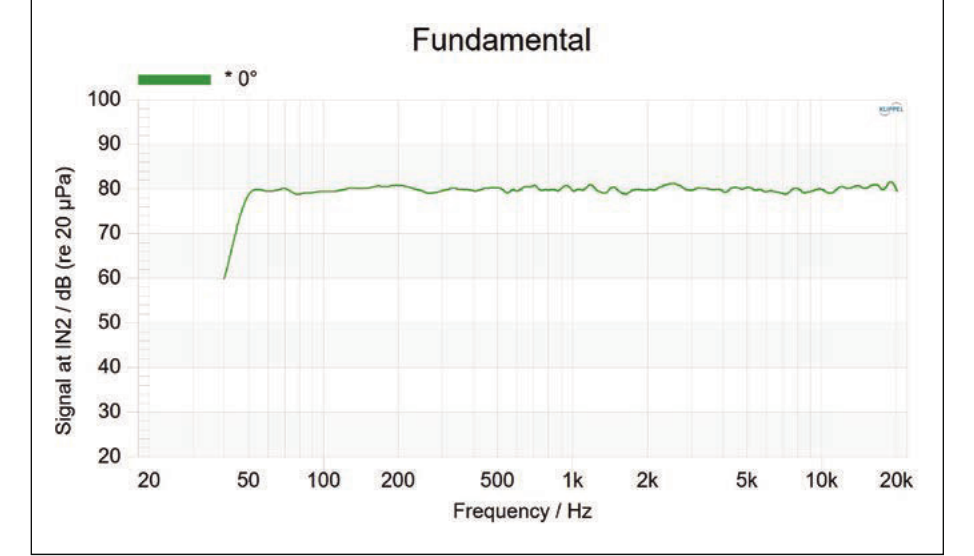

On-axis response acoustic axis SPL
On-axis responseacoustic axis SPLFlat across the audible band — you hear the mix, not the speaker.

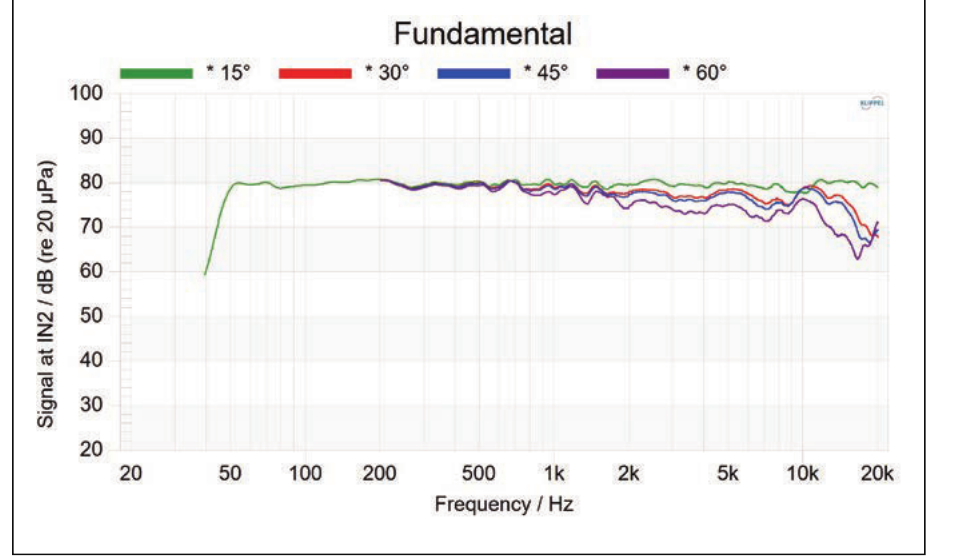

Off-axis 15°/30°/45°/60°
Off-axis15°/30°/45°/60°Consistent response off-center — a wide, stable sweet spot.

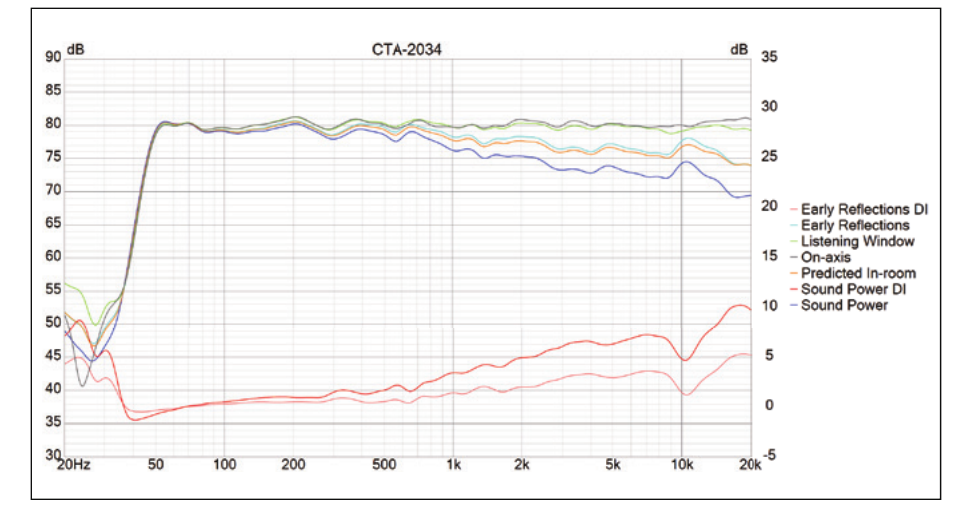

CTA-2034 spinorama
CTA-2034spinoramaIndustry-standard full-sphere data — smooth curves predict good in-room sound.

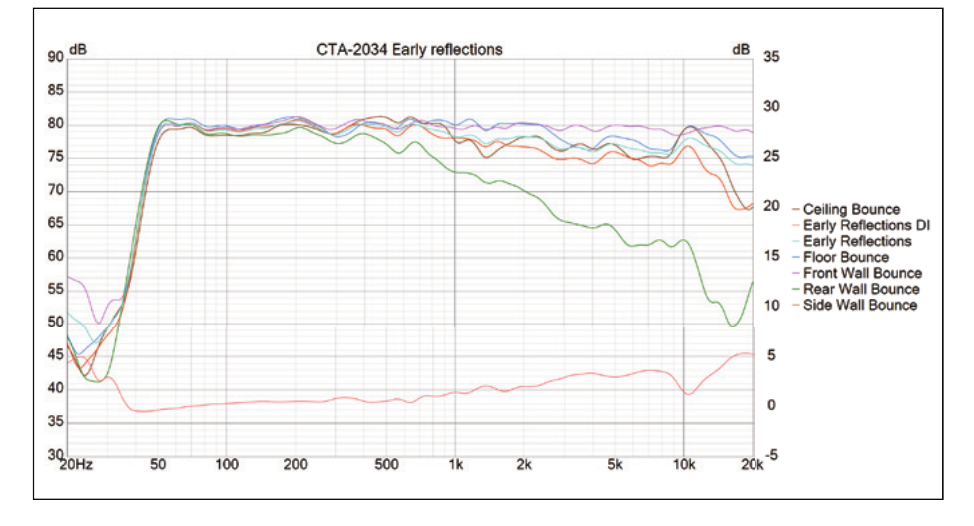

CTA-2034 early reflections
CTA-2034early reflectionsWall and ceiling bounces keep the same character as the direct sound.
Tone & placement desk / wall / d&w / dyn
Tone & placementdesk / wall / d&w / dynEvery EQ and placement mode, measured — settings do exactly what they say.

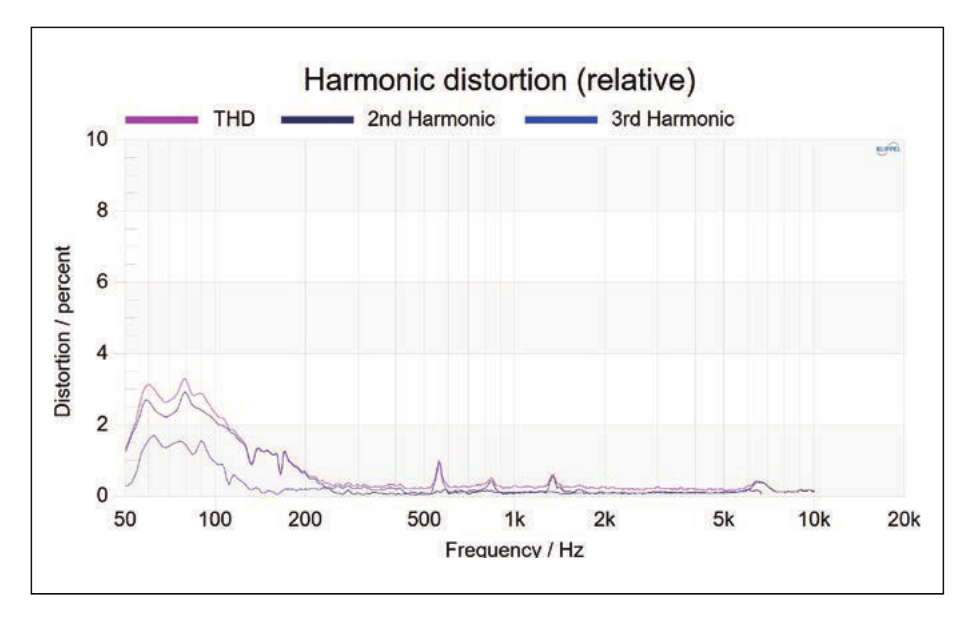

Distortion @ 80 dB / 1 m
Distortion@ 80 dB / 1 mDistortion stays low at normal listening levels.

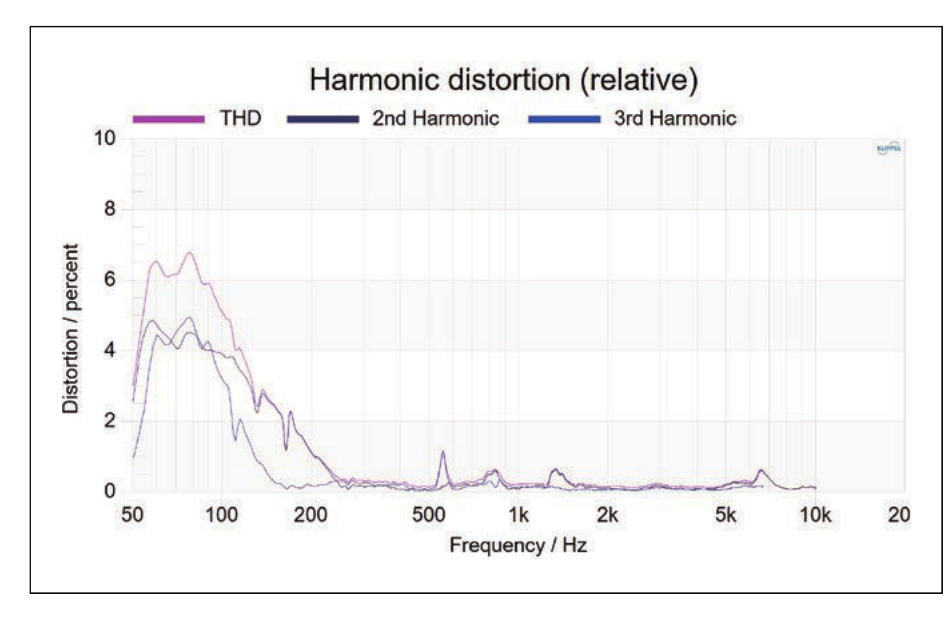

Distortion @ 85 dB / 1 m
Distortion@ 85 dB / 1 mPushed harder, it remains clean and controlled.

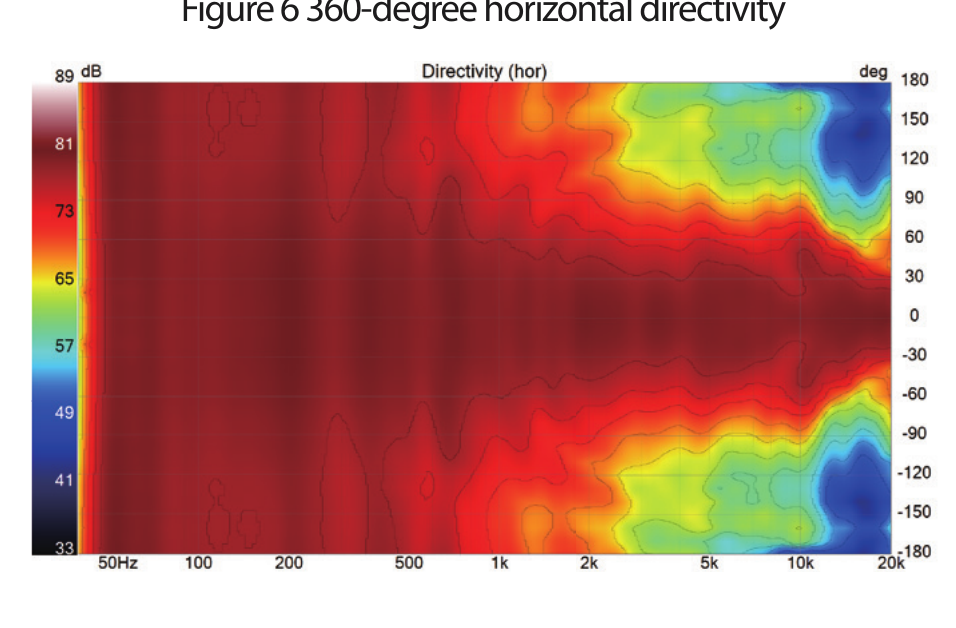

Directivity horizontal 360°
Directivityhorizontal 360°Even horizontal spread keeps stereo imaging stable across the desk.

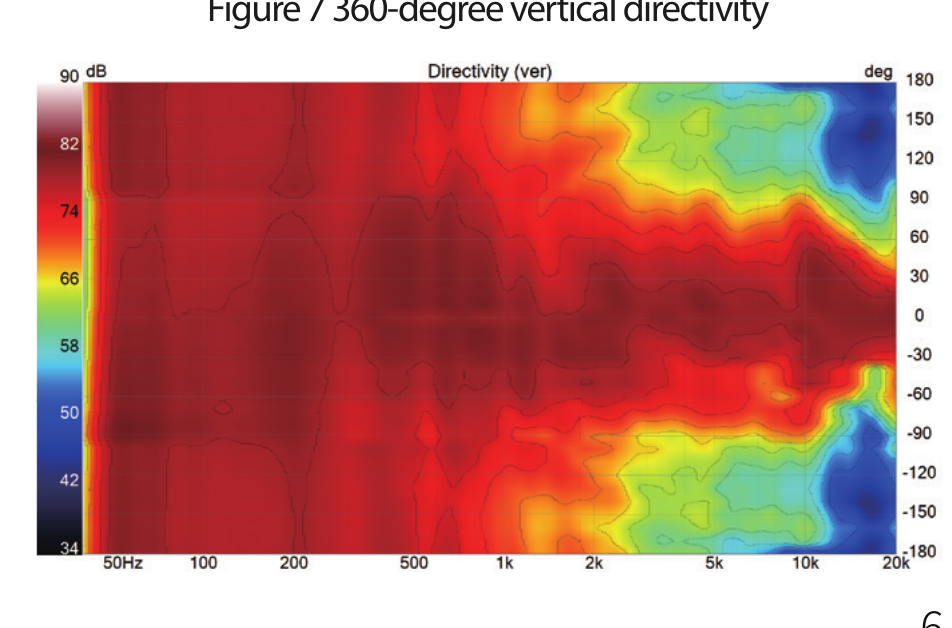

Directivity vertical 360°
Directivityvertical 360°Controlled vertical spread reduces desk and ceiling reflections.

All measurements: 1 m free field, Klippel NFS. Click any chart to enlarge.

02Acoustics 46 Hz – 20 kHz · 97 dB
Frequency response (−3 dB)49 Hz – 20 kHz
Frequency response (−6 dB)46 Hz – 20 kHz
Max SPL @ 1 m95 dBshort-term · 100 Hz – 6 kHz
Max SPL @ 1 m97 dBlong-term · IEC 60268-5
Crossover240 Hz / 3.6 kHz3rd order
THD @ 80 dB / 1 m<1 %240 Hz – 20 kHz
THD @ 80 dB / 1 m<2 %100 – 240 Hz
Signal-to-noise ratio92 dB1 kHz · 8.9 V RMS
03Drivers 3.5″ + 3″ + 1″ + PR 5″

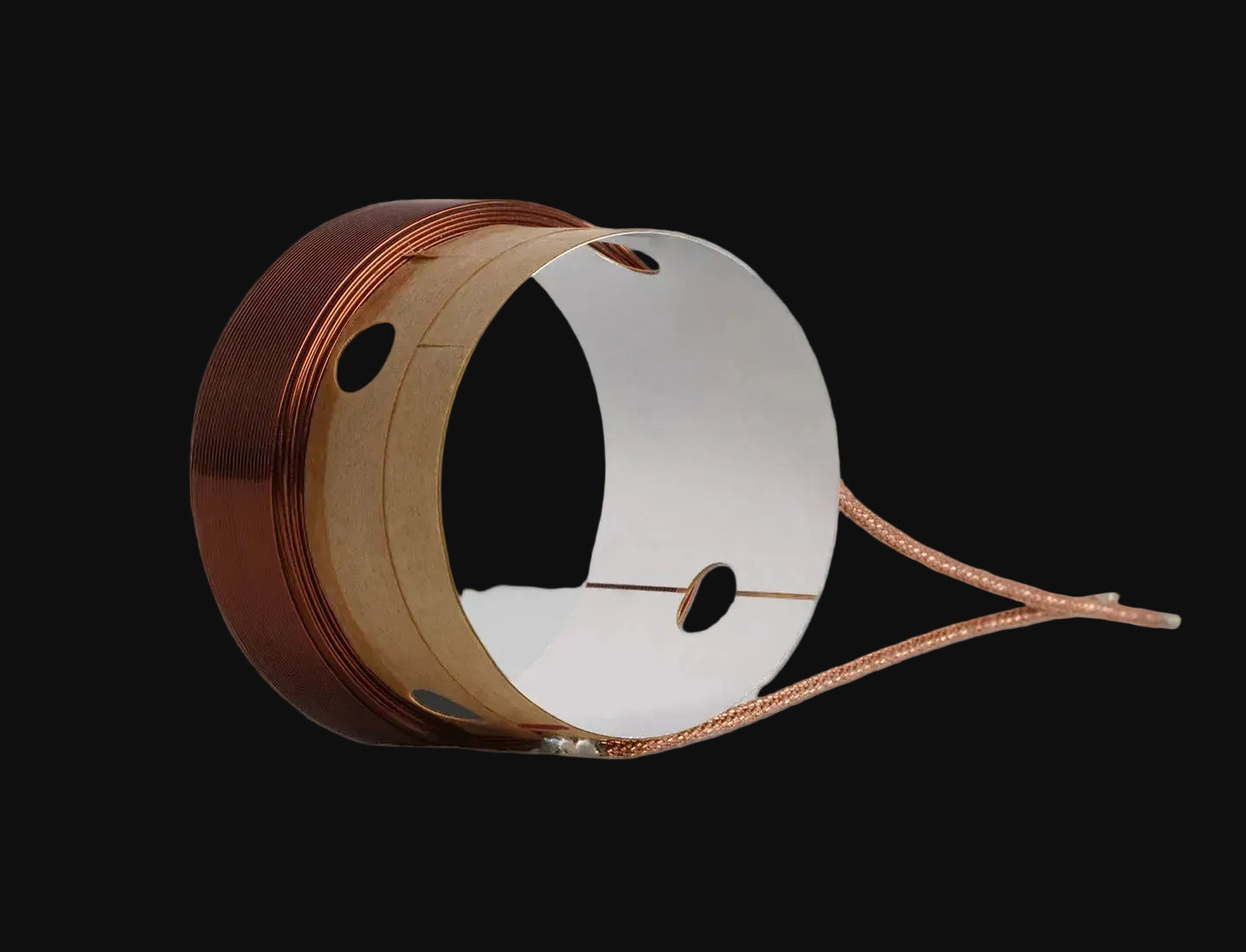

Woofer3.5″ carbon-fiber cone30 mm voice coil
Coaxial midrange3″ carbon-fiber cone26 mm voice coil
Coaxial tweeter1″ silk dome25 mm voice coil
Passive radiator5″ equivalent
04Amplification & DSP 3 × Class-D · 68.6 W total
Output power44.3 / 17.95 / 6.32 WLF / MF / HF
Power amplifiersMA12070P Class-DPBTL bass · BTL mid/high
ADC / DSPPCM1804 / ADAU1701
Op-ampsOPA1678 × 3
Master clock24.576 MHz
05Inputs & Control XLR · RCA · 4 placement modes
Analog inputsXLR +4 dBu · RCA −10 dBV
Max input level+12 dBu (XLR) · −2 dBV (RCA)

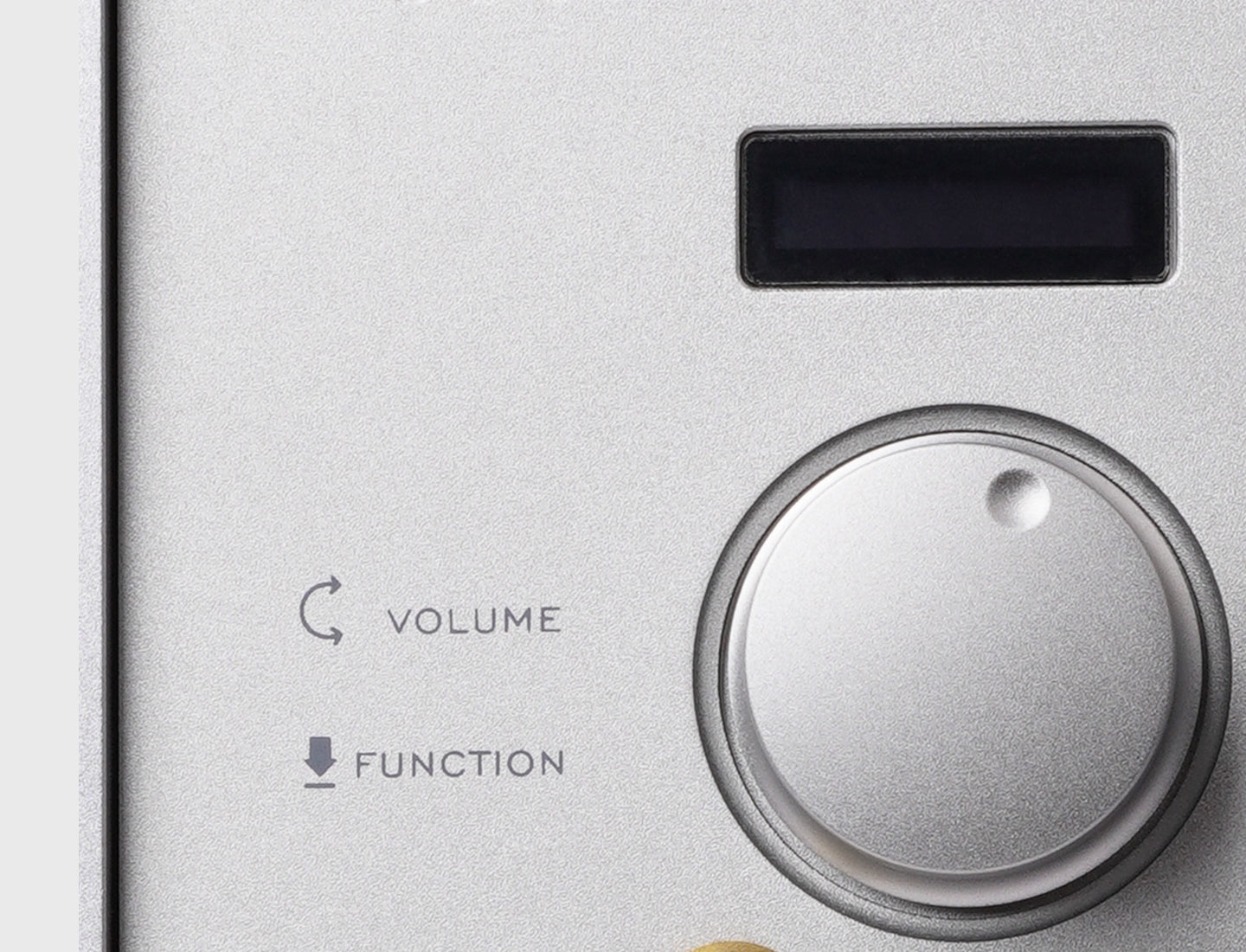

Volume range−30 dB to +6 dB0 dB reference
Tone adjustTreble +2/0/−2 dB · Bass −4/−2/0 dB/Dyn
Placement modesFree · Desk · Wall · Desk & Wall
06Physical & Power 4.0 kg · 195 × 110 × 200 mm
Dimensions (H × W × D)195 × 110 × 200 mmexcl. stand
Weight4.0 kg
EnclosureUnibody aviation-grade aluminum
Power100–240 V AC · 50/60 Hz · 3.5 W standby · 52.5 W max
Specifications subject to change. Full test conditions in the manual.
