PRO SERIES

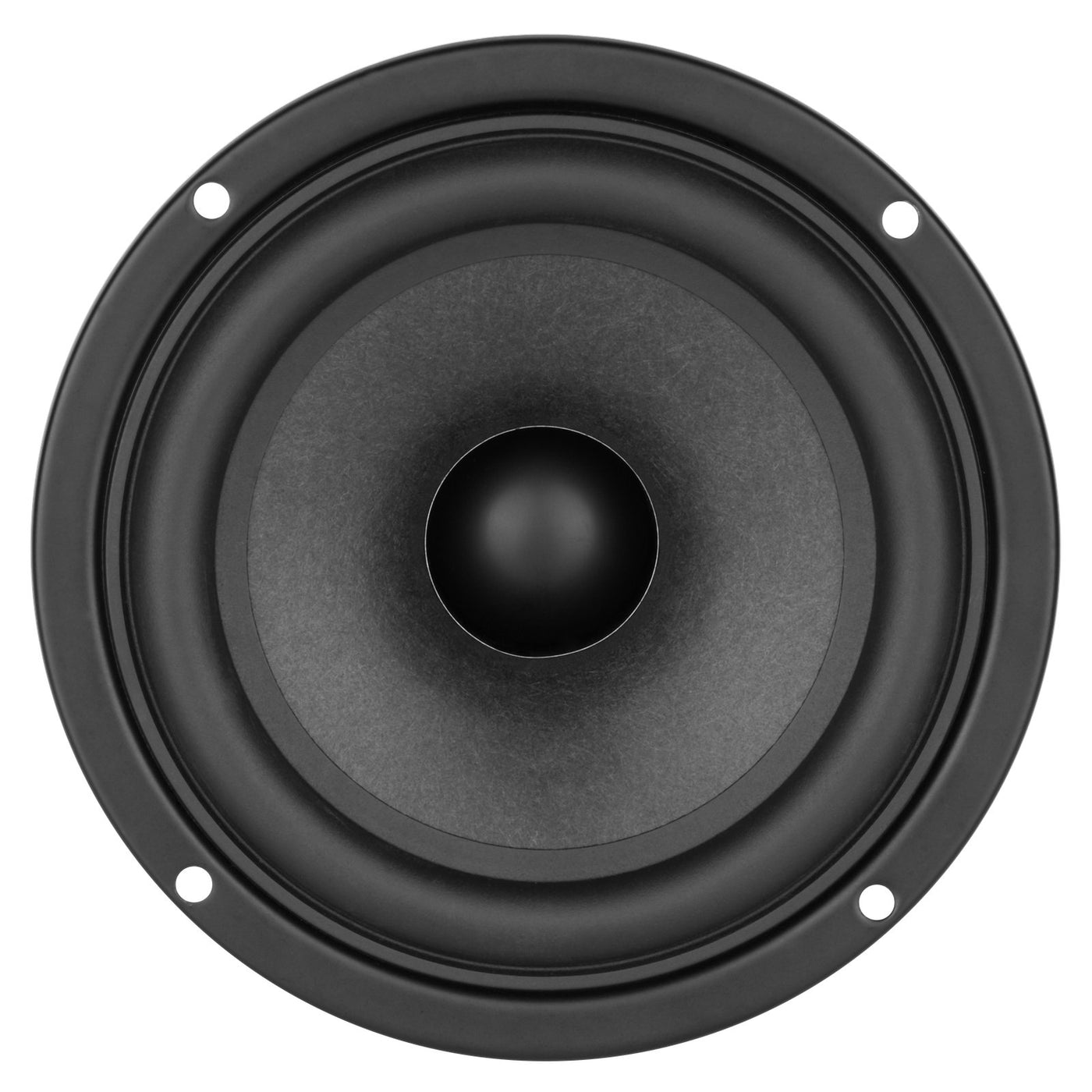

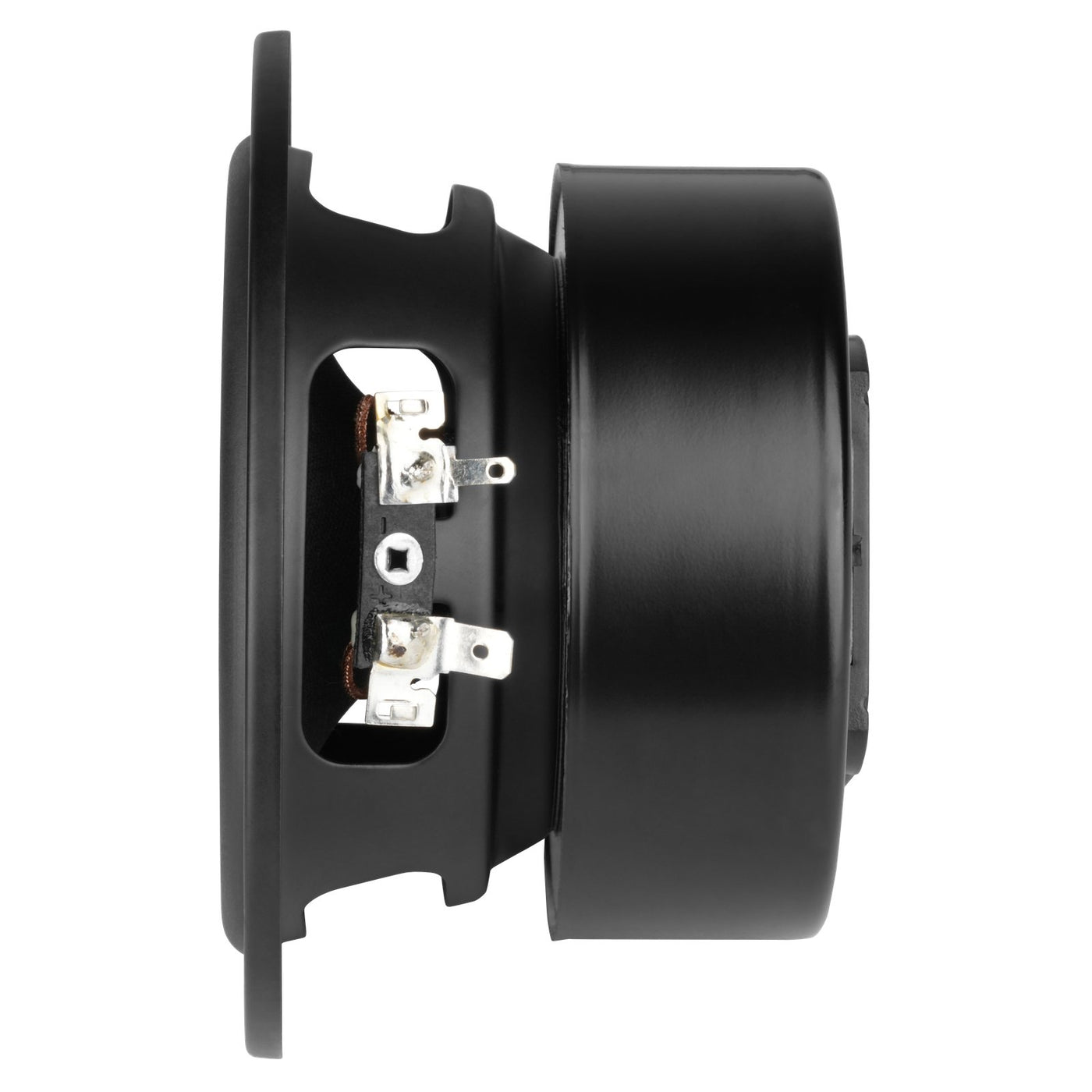

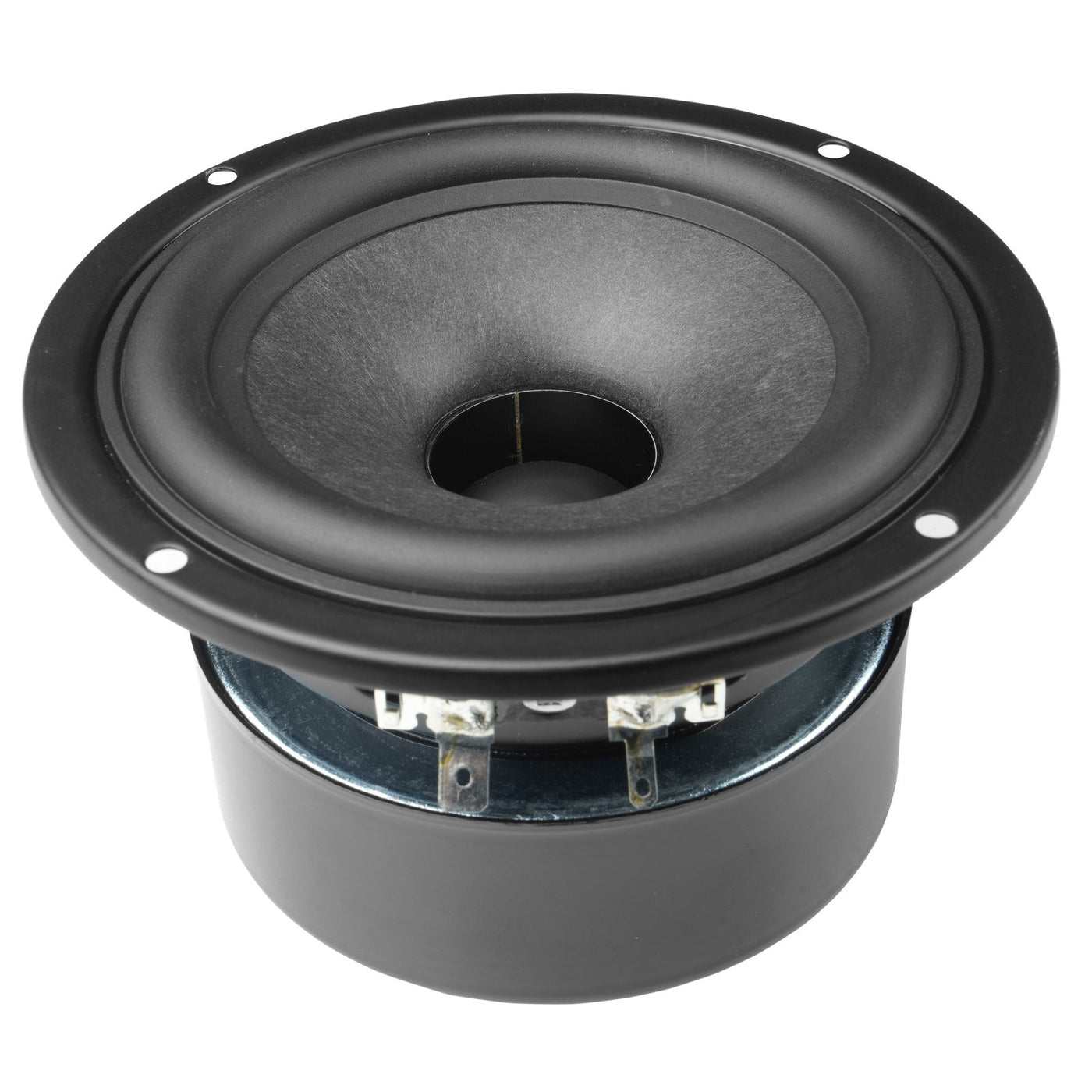

PRO 4" Coaxial Speaker Driver (Shielded)
Model SV-103C-44-080-0085-01
85–20kHzFrequency Range
84dBSensitivity
4ΩImpedance
30WRated Power
Features
- 4-inch wool fiber cone woofer
- 1-inch polymer material dome tweeter
- Ferrite External magnetic circuit
- Magnetic Shielding Design
- Sovox ISP patented coaxial loudspeaker
Request a quote
SV-103C-44-080-0085-01
If you have any questions, you are always welcome to contact us. We'll get back to you as soon as possible, within 24 hours on weekdays.
-
Shipping Information
Use this text to answer questions in as much detail as possible for your customers.
-
Customer Support
Use this text to answer questions in as much detail as possible for your customers.
-
FAQ’s
Use this text to answer questions in as much detail as possible for your customers.
-
Contact Us
Use this text to answer questions in as much detail as possible for your customers.
01General Specification
| Unit | LF | HF | |
|---|---|---|---|
| Diameter | mm | ∅116 | ∅25.7 |
| Nominal impedance | Ω | 4 | 4 |
| Program power [1] | W | 30 | 10 |
| AES power rating [2] | W | 25 | 5 |
| Sensitivity [3] | dB | 84 | 83 |
| Frequency range | Hz | F0–20k | |
| Voice coil diameter | inch | 1.0 | 1.0 |
| Frame material | — | Iron basket | |
| Magnet material | — | Ferrite | |
| Recommended crossover [4] | Hz | 2.5k | |
| Xmax [5] | mm | 3.25 | — |
| Driver displacement enclosure | L | 0.338 | — |
02LF T/S Parameters [6]
| DC resistance | Re (Ω) | 3.2 |
| Resonance frequency | Fs (Hz) | 85 |
| Moving mass | Mms (g) | 6.7 |
| Compliance | Cms (mm/N) | 0.47 |
| Mechanical losses | Rms (kg/s) | 0.65 |
| Force factor | BL (N/A) | 3.1 |
| Mechanical Q-factor | Qms | 5.8 |
| Electrical Q-factor | Qes | 1.2 |
| Total Q-factor | Qts | 1.0 |
| Equivalent air volume | Vas (L) | 2.05 |
| Voice coil Inductance | Le (mH) | 0.21 |
| Diaphragm area | Sd (cm²) | 55.42 |
| Reference efficiency | η0 (%) | 0.11 |
03Shipping Information
| Net weight | kg | 0.75 |
| Unit size | mm | ∅116×H74 |
| Multipack weight | kg | — |

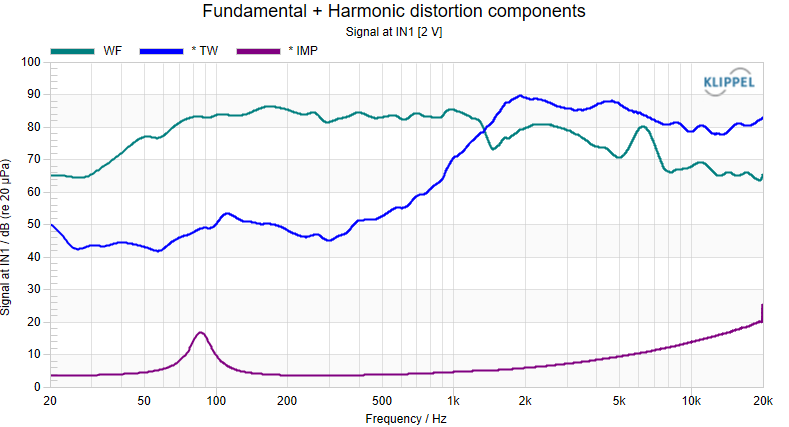

04SPL & Impedance Curve

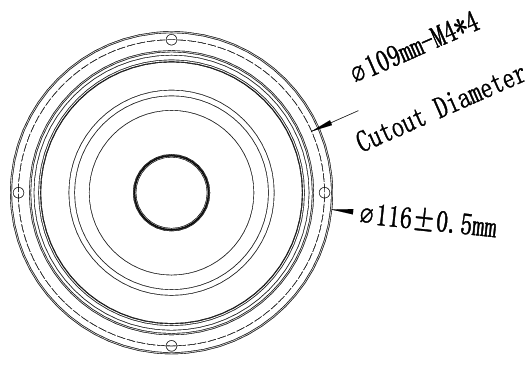

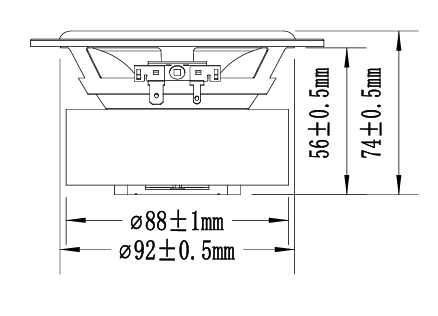

05Dimensions mm
Test Notes
- Program power is defined as 3 dB greater than AES power.
- Tested in free air for two hours using a continuous band-limited pink noise signal as per AES 2-1984 Rev. 2003.
- Measured on axis at 2 V, 1 m; SPL is the average at 200, 500, 800 and 1000 Hz.
- High-pass filter with slope 12 dB/oct. or higher.
- Xmax = (Hvc − Hg) / 2, where Hvc is voice-coil height and Hg the gap height.
- Thiele-Small parameters measured after preconditioning (20–22 °C, 50% RH, 2 h) by Klippel LSI. All specifications subject to change without notice.
