PRO SERIES

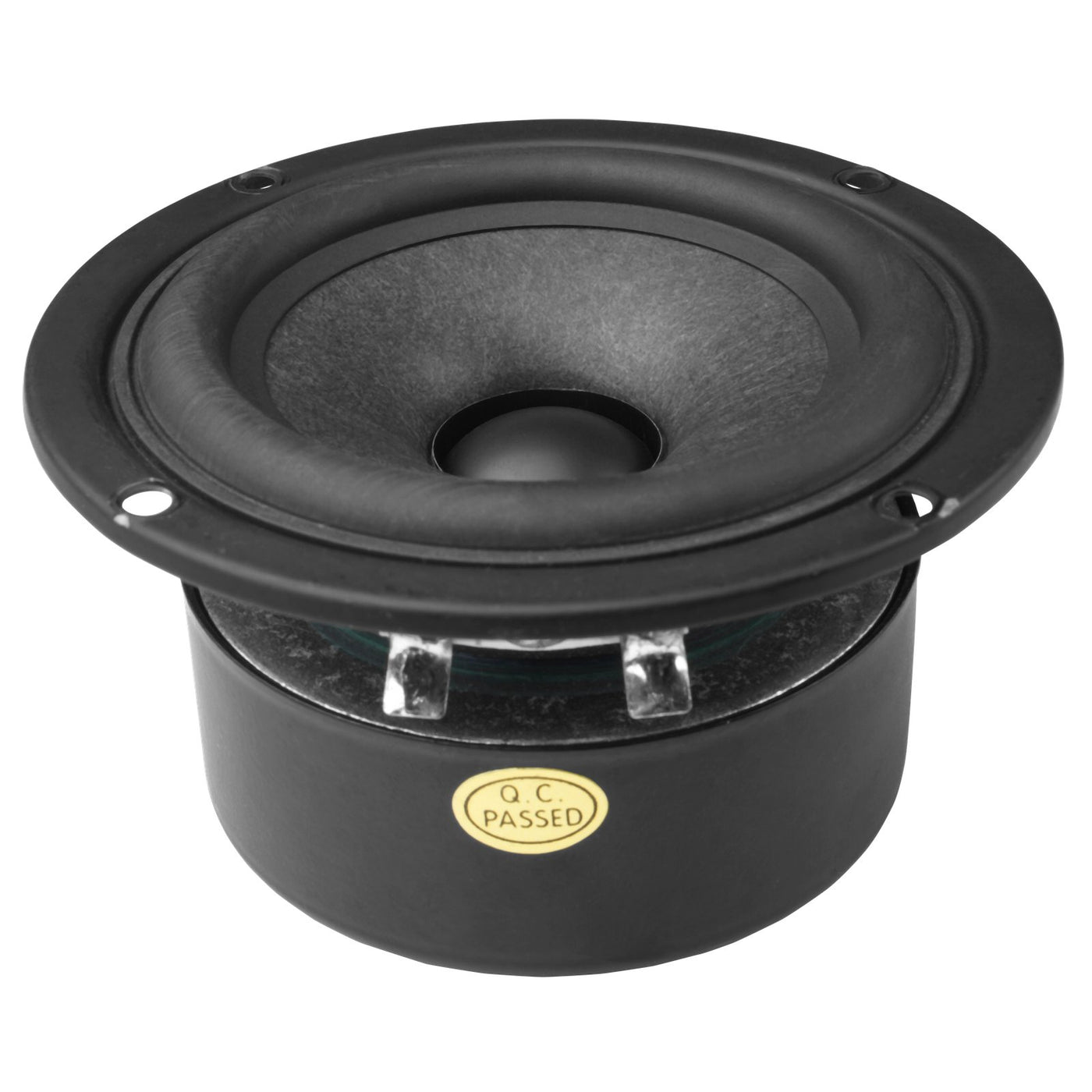

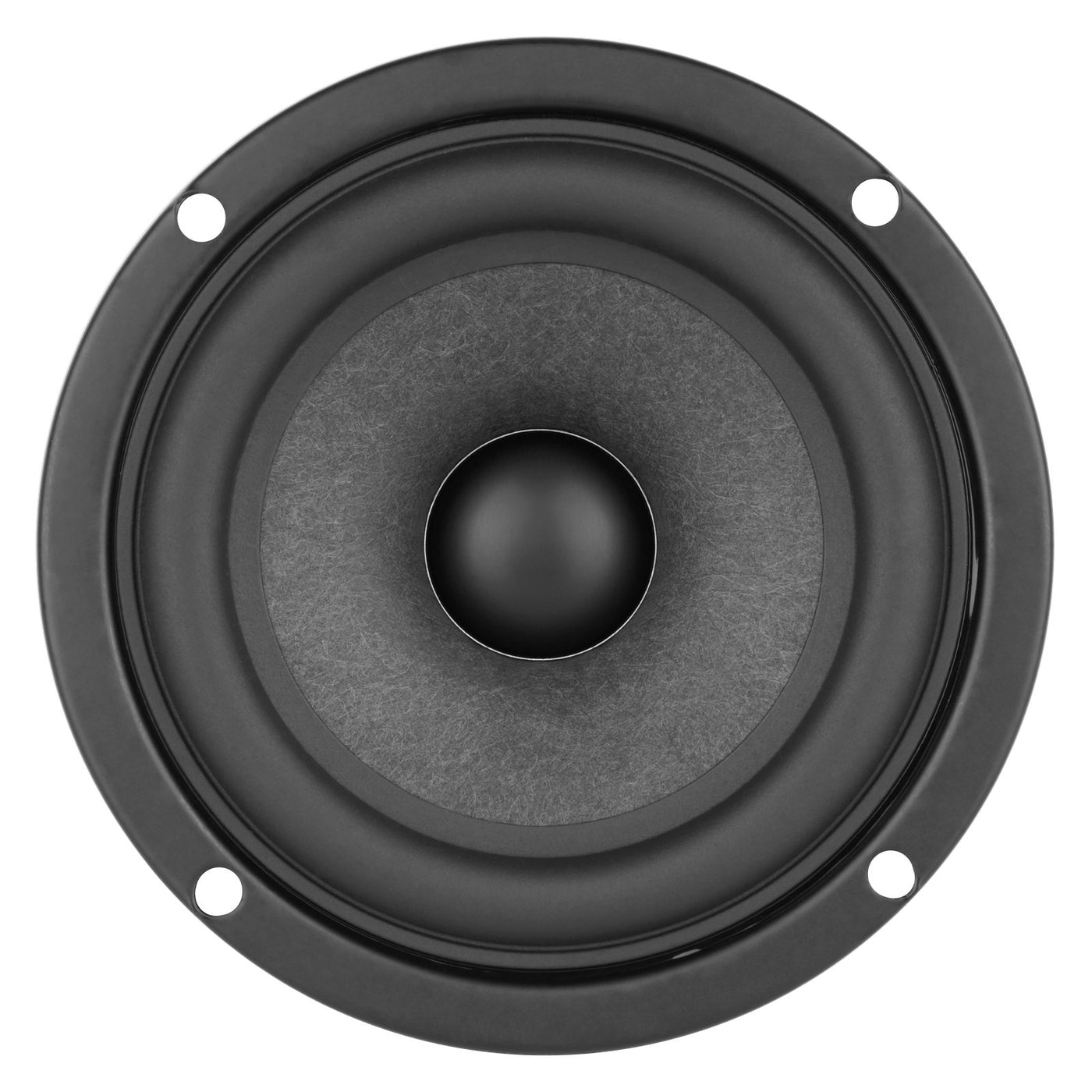

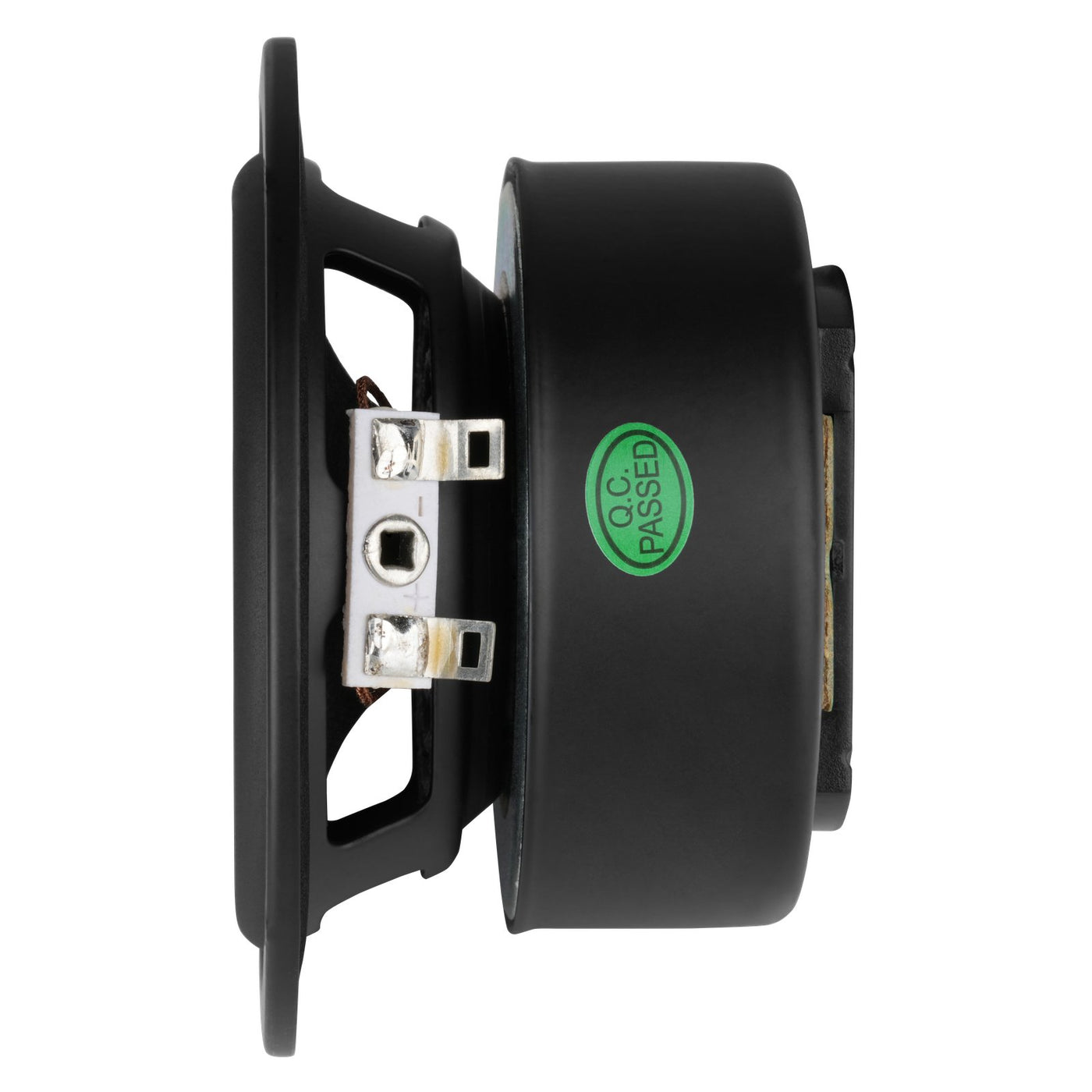

PRO 3" Coaxial Speaker Driver (Wool Cone)
Model SVF090WR-44-068-098
125–20kHzFrequency Range
82dBSensitivity
4ΩImpedance
15WRated Power
Features
- 3-inch wool cone woofer
- 0.75-inch dome tweeter
- Sovox ISP coaxial architecture
- One of the world's smallest two-way coaxial speakers
- Magnetic Shielding Design
- Multiple sub-models available for selection
Request a quote
SVF090WR-44-068-098
If you have any questions, you are always welcome to contact us. We'll get back to you as soon as possible, within 24 hours on weekdays.
-
Shipping Information
Use this text to answer questions in as much detail as possible for your customers.
-
Customer Support
Use this text to answer questions in as much detail as possible for your customers.
-
FAQ’s
Use this text to answer questions in as much detail as possible for your customers.
-
Contact Us
Use this text to answer questions in as much detail as possible for your customers.
01General Specification
| Unit | LF | HF | |
|---|---|---|---|
| Diameter | mm | ∕89 | ∕19.7 |
| Nominal impedance | Ω | 4 | 4 |
| Program power [1] | W | 15 | 5 |
| AES power rating [2] | W | 10 | 3 |
| Sensitivity [3] | dB | 82 | 86 |
| Frequency range | Hz | F0–8k | F0–20k |
| Voice coil diameter | mm | ∕20.4 | ∕19.4 |
| Frame material | — | Iron basket | |
| Magnet material | — | Ferrite (Y30) | NdFeB |
| Recommended crossover [4] | Hz | 2.5k | |
| Xmax [5] | mm | 4.0 | — |
| Xmech [6] | mm | 5.15 | — |
| Driver displacement enclosure | L | 0.137 | — |
02LF T/S Parameters [6]
| DC resistance | Re (Ω) | 3.68 |
| Resonance frequency | Fs (Hz) | 125.9 |
| Moving mass | Mms (g) | 2.995 |
| Compliance | Cms (mm/N) | 0.533 |
| Mechanical losses | Rms (kg/s) | 0.297 |
| Force factor | BL (N/A) | 2.486 |
| Mechanical Q-factor | Qms | 7.981 |
| Electrical Q-factor | Qes | 1.412 |
| Total Q-factor | Qts | 1.200 |
| Equivalent air volume | Vas (L) | 0.7568 |
| Voice coil Inductance | Le (mH) | 0.152 |
| Diaphragm area | Sd (cm²) | 31.67 |
| Reference efficiency | η0 (%) | 0.103 |
03Shipping Information
| Net weight | kg | 0.45 |
| Unit size | mm | ∅89×H53 |
| Multipack weight | kg | — |
04SPL & Impedance Curve

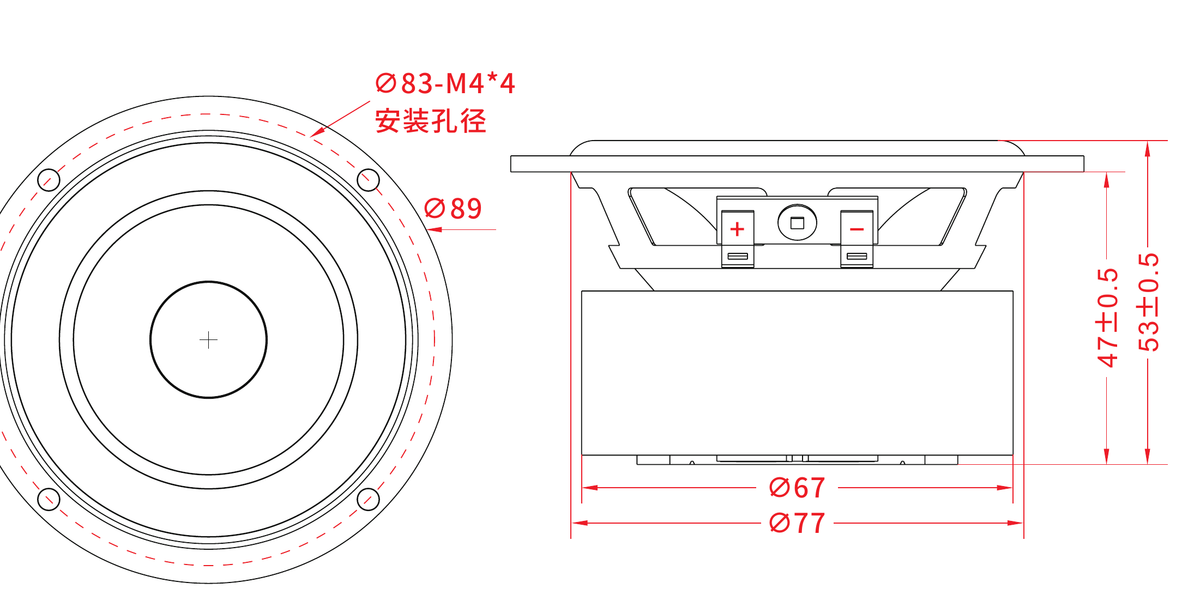

05Dimensions mm
Test Notes
- Program power is defined as 3 dB greater than AES power.
- Tested in free air for two hours using a continuous band-limited pink noise signal as per AES 2-1984 Rev. 2003.
- Measured on axis at 2.83 V, 1 m; SPL is the average at 200, 500, 800 and 1000 Hz.
- High-pass filter with slope 12 dB/oct. or higher.
- Xmax = (Hvc − Hg) / 2, where Hvc is voice-coil height and Hg the gap height.
- Thiele-Small parameters measured after preconditioning (20–22 °C, 50% RH, 2 h) by Klippel LSI. All specifications subject to change without notice.
