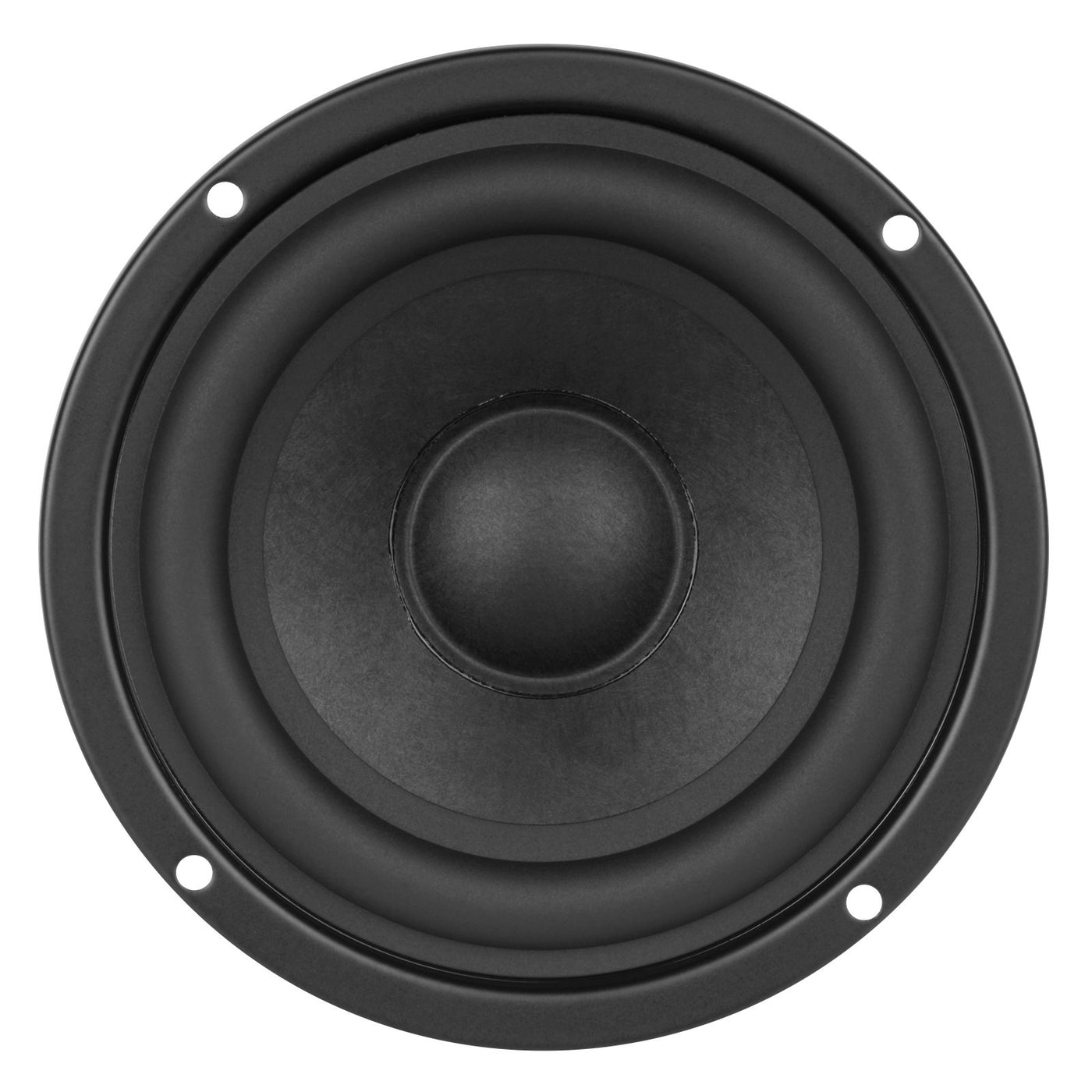

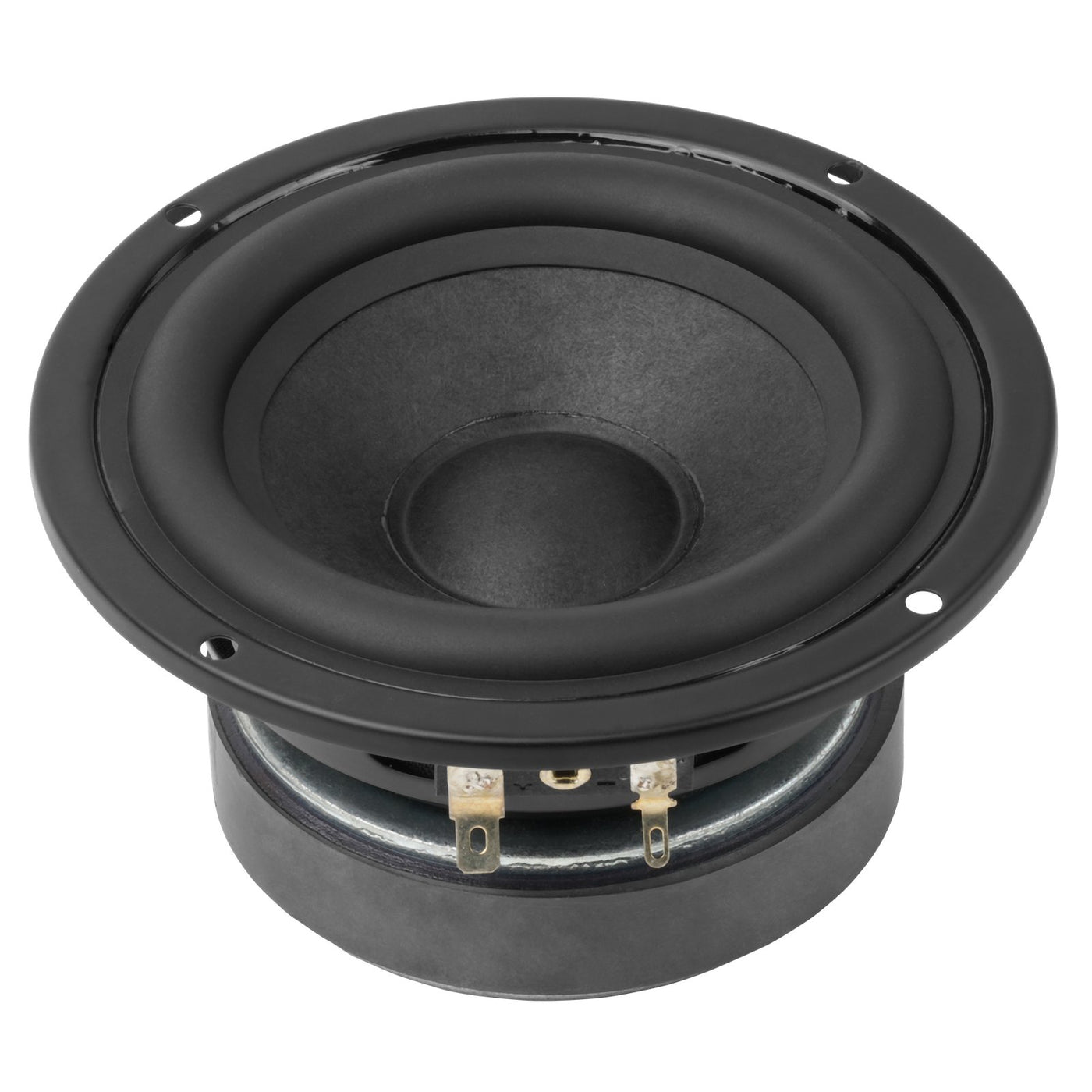

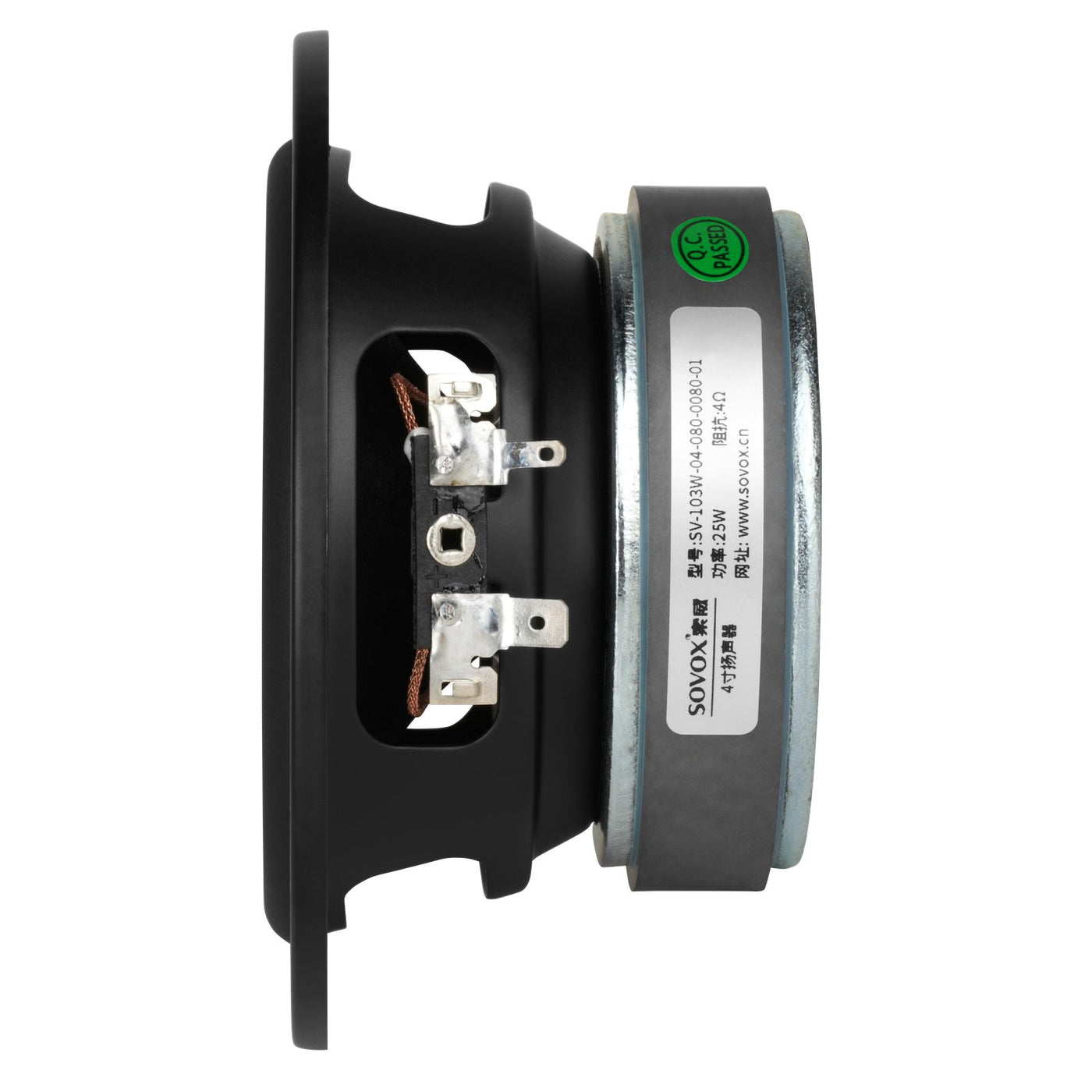

PRO 4 英寸中低音单元

Model  SV-103W-04-080-0080-01

80–10kHzFrequency Range
85dBSensitivity
4ΩImpedance
25WRated Power

Features

  • 4 英寸中低音振膜
  • 轻质高刚性振膜
  • 耐高温音圈
Download PDF
01General Specification
UnitValue
直径 mm∅116
标称阻抗 Ω4
节目功率 [1] W25
AES 额定功率 [2] W30
灵敏度 [3] dB85
频率范围 HzF0–10kHz
音圈直径 inch1.0
盆架材料 —铁盆架
磁钢材料 —铁氧体
建议分频点 [4] Hz1KHz
最大线性冲程（Xmax） [5] mm4.0
单元排水容积 L0.267
02LF T/S Parameters [6]
直流电阻Re (Ω)3.2
谐振频率Fs (Hz)77
振动质量Mms (g)8.5
顺性Cms (mm/N)0.5
机械损耗Rms (kg/s)0.8
力因数BL (N/A)4.8
机械品质因数Qms5
电品质因数Qes0.56
总品质因数Qts0.5
等效容积Vas (L)1.86
音圈电感Le (mH)0.23
振膜面积Sd (cm²)51.53
参考效率η0 (%)0.14
03Shipping Information
净重kg0.73
单元尺寸mm∅116×H61
整箱重量kg—
04SPL & Impedance Curve

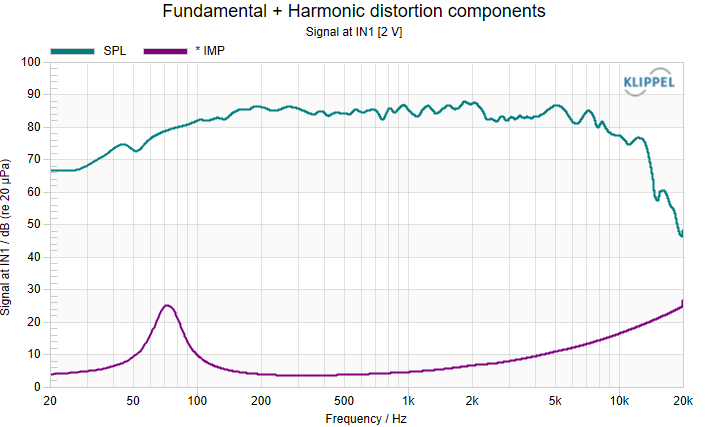

SPL and impedance curve
Measured with KLIPPEL equipment, on baffle, in Sovox's full-scale anechoic chamber.
05Dimensions mm

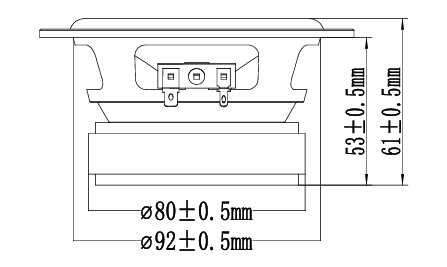

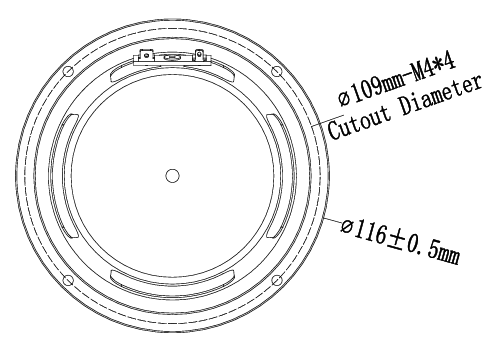

dimension drawing dimension drawing

Test Notes

  1. Program power is defined as 3 dB greater than AES power.
  2. Tested in free air for two hours using a continuous band-limited pink noise signal as per AES 2-1984 Rev. 2003.
  3. Measured on axis at 2 V, 1 m; SPL is the average at 200, 500, 800 and 1000 Hz.
  4. High-pass filter with slope 12 dB/oct. or higher.
  5. Xmax = (Hvc − Hg) / 2, where Hvc is voice-coil height and Hg the gap height.
  6. Thiele-Small parameters measured after preconditioning (20–22 °C, 50% RH, 2 h) by Klippel LSI. All specifications subject to change without notice.
